Amiko A4 T2/Cable Android Set-Top Box Ultra HD (discontinued)

Further details of Amiko A4 T2/Cable Android Set-Top Box Ultra HD

• Based on Android 5.1.1
• Hundreds of thousands of available applications!
• KODI media player support
• Easy streaming to iOS, Android devices & PC’s
• DLNA - Easy playback over local network
• 4K 2160p output via HDMI2.0
• Ethernet connection & built in Wireless-N WiFi
• Wired and wireless keyboard & mouse support
• High quality digital surround sound via S/PDIF and HDMI
• Low power consumption in Stand-By mode

Technical specifications:

System Resources

Main CPU: AMlogic S905 quad core Cortex
A53 64bit 2.0GHz
Main GPU: Octo-core Mali 450MP GPU
(600MHz)
RAM: 1GB DDR3
Flash Memory: 8GB

Tuner & Demodulation

Tuner Type: DVB-T2 / DVB-T/ DVB-C
Frequency Range: 48~862MHz
RF Input Level: -80dBm to -20dBm
Antenna power output: DC 5V at max 75mA, Overload
protection
Demodulation: COFDM 1K, 2K, 4K, 8K, 16K,
32K normal and extended
Input Symbol Rate: 1.0 ~ 7.0Ms/s
Constellations: QPSK, 16QAM, 64QAM,
256QAM / Both rotated and
non-rotated
Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16,
1/32, 1/128
Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

Audio / Video Decoding

Input Rate: Max. 120Mbit/s
Aspect Ratio: 4:3, 16:9
Video Decoding: H.265/HEVC, MPEG-2, MP ML,
MPEG-4 Part 10 / H.264
Video Resolution: 720*480p/i, 720*576p/i,
1280*720p, 1920*1080i/p, 2160p
Audio Decoding: MPEG-1 layer I/II, Mpeg2 layer II,
Dolby Digital
Audio Mode: Left / Right / Stereo / Mono
Sampling Rate: 32, 44.1 & 48KHz

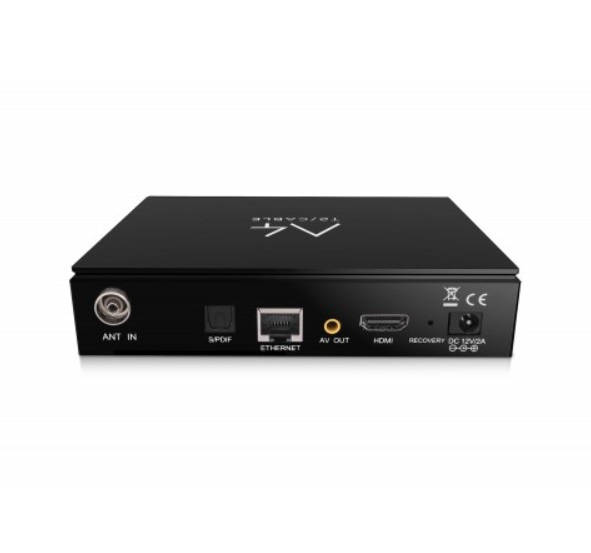

Interfaces:

HDMI: Type-A, Version 2.0
AV: Jack Type (CVBS video & Audio
L/R output)
USB: 2x High Speed USB2.0 ports
SD Card: 1 MicroSD card slot (up to 32GB)
Ethernet: 10/100M RJ45
WiFi: Built-in 802.11b/g/n WiFi
connection
S/PDIF: Optical for digital audio output

Power Supply:

Type: External power supply
Input voltage: 110V - 240V AC
Output voltage: DC 12V (2A)
Stand-By power consumption: <0.5W

Physical Specifications:

Size (WxDxH): 140mm x 100mm x 31mm
Operation Temperature: 0oC - 40oC
Storage Temperature: -10oC - 70oC
Storage Humidity: 5-95% RH (Non Condensing)
