Amiko T765 Terrestrial Digital Receiver And Media Player

Further details of Amiko T765 Terrestrial Digital Receiver And Media Player

Tuner & Demodulation
• Tuner Type: DVB-T2
• Frequency Range: 108MHz~862MHz
• RF Input Level: "-80dBm to -20dBm"
• Antenna power output: DC 5V at max 75mA, Overload protection
• Demodulation: COFDM 1K, 2K, 4K, 8K normal
• and extended, 16K normal and extended,
• 32K normal and extended
• Input Symbol Rate: 1.0 ~ 7.0Ms/s
• Constellations: QPSK, 16QAM, 64QAM
• Guard Intervals: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
• Code Rate: 1/2, 3/5, 2/3, 3/4, 5/6

MPEG TS A/V Decoding
• Transport Stream: 10 bit HEVC
• Input Rate: Max.120Mbit/s
• Aspect Radio: 4:3, 16:9, Letter Box
• Video Decoding: MPEG-2, MP@ML, MPEG-4
• Video Resolution: 720*480p/i, 720*576p/i,1280*720p, 1920*1080p/i
• Audio Decoding: MPEG-1 layer I/II, MPEG-2 layer II, Dolby Digital
• Audio Mode: Left / Right / Stereo/ Mono
• Sampling Rate: 32, 44.1 and 48KHz

System Resources
• Main Processor: 594 MHz based CPU
• Flash Memory: 32MBits
• DDR RAM: 512Mbits

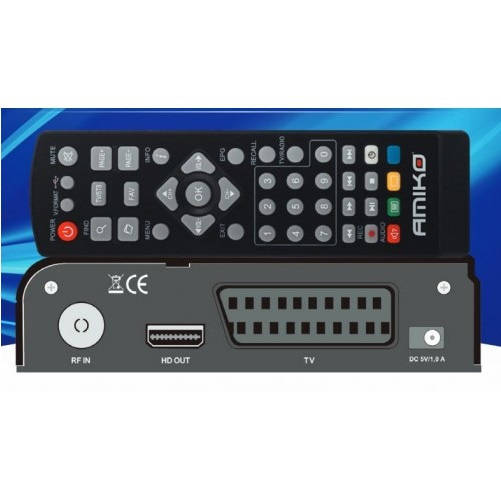

A/V & Data Input/Output
• USB: One USB 2.0 slot Compatible
• HDMI: VER1.3, Type A, Dolby Digital Bit-Stream Output
• SCART: CVBS Video & Audio L/R output

Physical Specifications
• Size[W*H*D]: 130mm*65mm*30mm
• Net Weight: 0.10 Kg
• Operation Temperature: 0°C~+45°C
• Storage Temperature: -10°C~+70°C
• Storage Humidity: 5%~95% RH (Non-Condensing)
