Discontinued Products Discontinued Carant Products

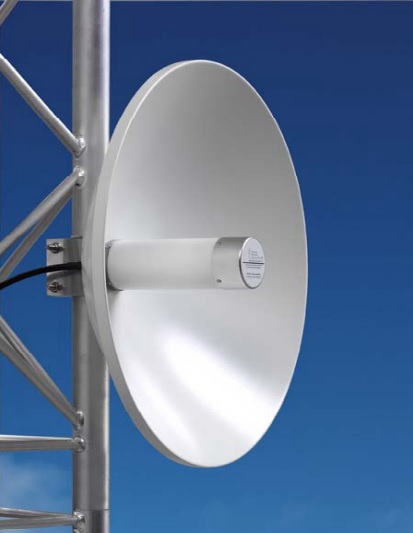

Carant SP60/54 WLAN 5 GHz Parabolic Antenna (discontinued)

CAR-029-999

Key features of Carant SP60/54 WLAN 5 GHz Parabolic Antenna

• Type: parabolic
• Frequency range: 5470-5875 MHz
• Impedance: 50Ω
• Radiation angle: 7°
• Polarisation: linear (mounting in 45° steps)
• Gain: 28 dBi
• VSWR: < 1,7:1
• Maximum input power: 20 Watts

This product is not available.
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.

English prospectus

Further details of Carant SP60/54 WLAN 5 GHz Parabolic Antenna

• Connector: N female
• Materials: aluminium alloy, stainless steel
• Dimensions: Ø 610 mm, depth: incl. mounting bracket: 250 mm, excl. mounting bracket: 150 mm
• Weight: 2700 g
