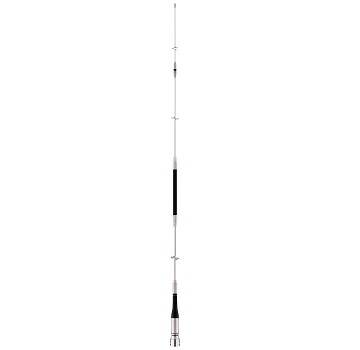

Diamond SG9500N Triband Mobil Antenna (2m/70cm/23cm)
Key features of Diamond SG9500N Triband Mobil Antenna (2m/70cm/23cm)
• Length:1m
• Gain: 3.15dB (144MHz), 6.3dB (430MHz), 9.7dB (1200MHz)
• Max.power rating:100W FM (144/430MHz), 50W FM (1200MHz), 100W (Total)
• Impedance: 50ohms
• VSWR:Less than 1.5:1
• Connector: NP(SG9500N)
• Type: 2x5/8wave C-Load radialless (430MHz), 5x5/8 C-Load radialless (1200MHz) :1/2 C-Load radialless (144MHz)
• Weight: 320g
Further details of Diamond SG9500N Triband Mobil Antenna (2m/70cm/23cm)
The Diamond SG-9500N is a high quality and durable tri-band mobile antenna for VHF (2m), UHF (70cm + 23 cm) with consistently good gain values. The maximum allowable transmit power is 100 watts (2m + 70cm) and 50 watts in the 23cm band.
The stainless steel radiator has both closed and open coils. The SG-9500N has an N-plug as connector, but is also available with PL-plug. It is completely "Radial-Less" designed and can therefore be operated in all three bands without additional counterpoise. The weight is 320 g, the VSWR is better than 1.5:1. An articulated joint completes the equipment.
With this triband antenna you get great flexibility in band selection, here three bands can be served with only one antenna. The good gain values of this antenna can be a decisive advantage when operating while driving. Due to the weight of the antenna, a secure mounting should be ensured. Before entering the garage, the antenna radiator can be folded down in a second, the annoying unscrewing of the antenna can thus be dispensed with.
