Dometic PerfectView BVS 71000 Bend Assist Camera (discontinued)

DOM-484-999

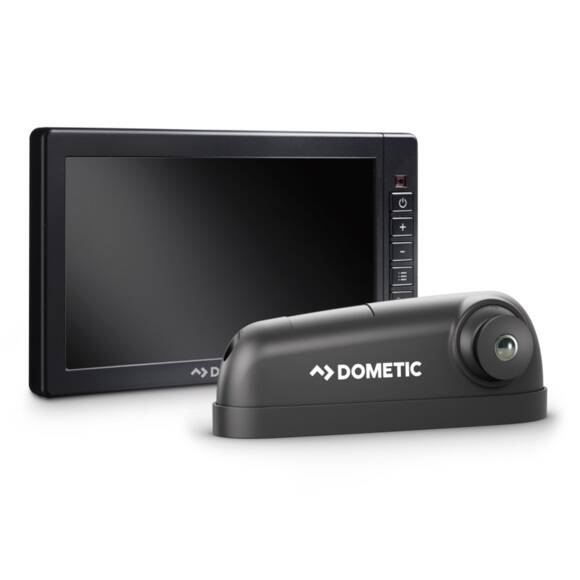

Dometic PerfectView BVS 71000 Bend Assist Camera

Key features of Dometic PerfectView BVS 71000 Bend Assist Camera

• Cornering assistance system with camera and heavy-duty 7" LCD monitor with AHD technology
• Input voltage (DC) 12/24 V
• 3 camera inputs
• Brightness adjustment via automatic LDR
• Image brightness: 400.00 cd/m²
• Video standard: PAL/NTSC Auto
• Vibration resistance: 6.00 g
• Can be set mirroring function
• Dimensions: 75 mm (depth) x 215 mm (height) x 75 mm (width) x 2.8 kg
• IP40/IP69k protection

This product is not available.
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.

Further details of Dometic PerfectView BVS 71000 Bend Assist Camera

Unlike traditional blind spot monitoring solutions, this turning camera reliably distinguishes between moving objects, such as pedestrians, and static objects, such as lampposts. This means that the driver is only alerted if there is a real danger. The kit includes an intelligent cornering camera and a heavy-duty 7" LCD monitor with AHD technology.


Other features:

• Three-in-one solution: detection of moving objects, video image of the area, active warning (visual/acoustic)
• System warns only in case of relevant hazards, i.e. when pedestrians or cyclists are moving in the blind spot
• Quick and easy installation - all camera components are integrated in a single housing
• Easy to connect to power supply - no additional sensors or control boxes required
• High-performance 7" LCD monitor with advanced AHD technology (analogue high definition)
• Camera with infrared LEDs for good image quality day and night


Compliant with the Direct Vision Standard (DVS): meets all requirements for fully operational pavement-mounted camera surveillance systems.


Safer driving without false alarms

The Dometic PerfectView BVS 71000 is a cornering assistance system that is far more advanced than conventional solutions. Its innovative CAM1000 blind spot monitoring camera reliably distinguishes between moving objects, such as pedestrians and cyclists, and stationary objects, such as traffic light poles and lampposts. This means that the driver is warned by a visual or audible warning - only in the event of a real danger. The position next to the vehicle is shown on the 7" LCD monitor that comes with the device. Extremely convenient: no need to activate the system as it switches on and off automatically depending on the speed. The advanced AHD monitor technology, with automatically activated day/night picture mode and infrared LEDs on the camera, guarantees excellent picture quality and comfortable and reliable operation day and night.

Dometic PerfectView BVS 71000 Bend Assist Camera related media

DOMETIC CAM1000 holttérfigyelő (BVS 71000)
