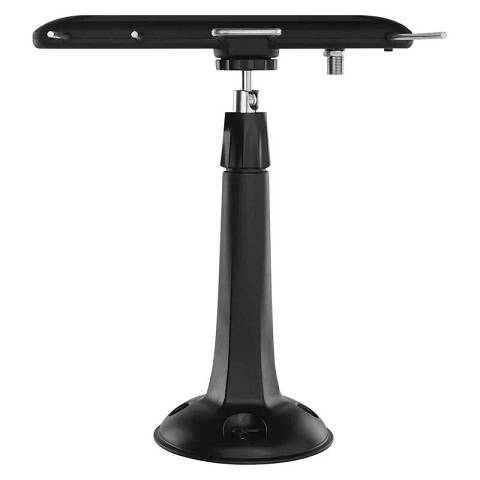

Emos EM-DIO3 Universal TV Antenna J0685
Key features of Emos EM-DIO3 Universal TV Antenna J0685
• For indoor/outdoor use
• LTE/4G/5G filter
• Reception: DVB-T/T2
• Frequency bands: UHF
• Frequency range: 470-698 MHz
• Vertical and horizontal polarization
• Reception angle: 30°/40°.
• Capable of receiving Full HD broadcasts and multiple transmitters
• Coaxial cable length: 5 m

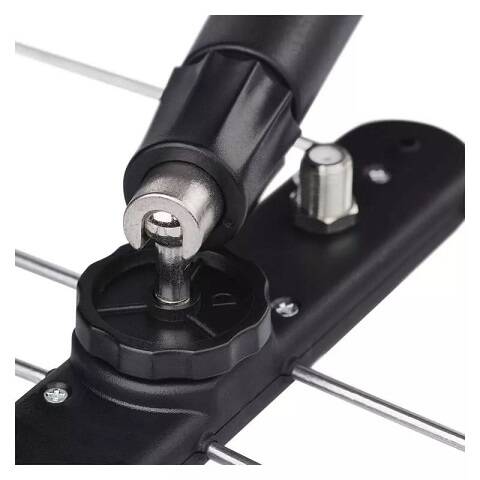

• Connector type: F, IEC
• Power supply: DC USB 5 V/550 mA (included)
• External low noise amplifier with separate source
• Output RF impedance: 75 Ohm
• Recommended installation distance from TV tower: 0-80 km (village)
• Dimensions: 315 × 215 × 200 mm
Further details of Emos EM-DIO3 Universal TV Antenna J0685

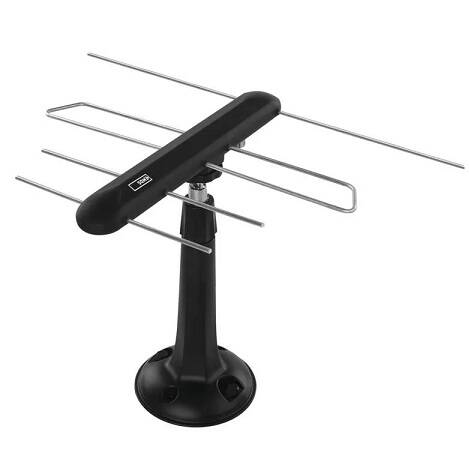

Universal antenna for indoor and outdoor use
If you are looking for an antenna that can be used both indoors and outdoors, you have found it. But the EM-DIO3 antenna will not only win you over with its versatility, but also with its functionality and modern design. Measuring 315 x 215 x 200 mm, the antenna is designed for DVB-T and DVB-T2 reception and is also capable of receiving FULL HD broadcasts, so you can enjoy your favourite programmes in the best quality.

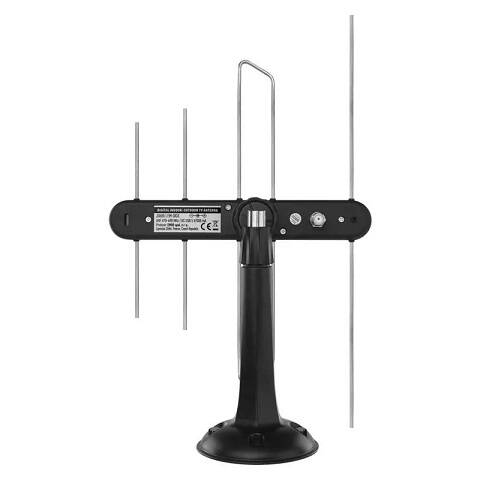

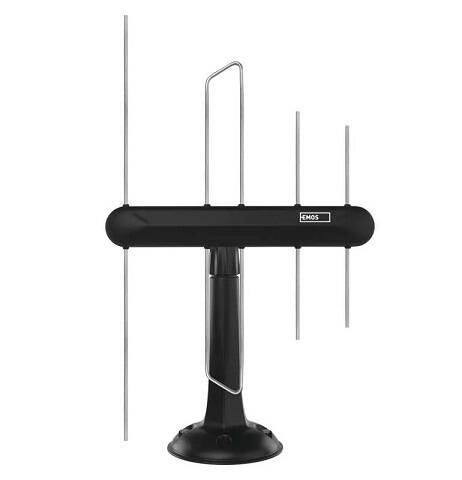

Vertical and horizontal polarisation
The antenna supports vertical and horizontal polarisation and has a reception angle of 30°/40°. It is suitable for reception from multiple transmitters and can be installed in caravans and motorhomes.
Undisturbed TV viewing

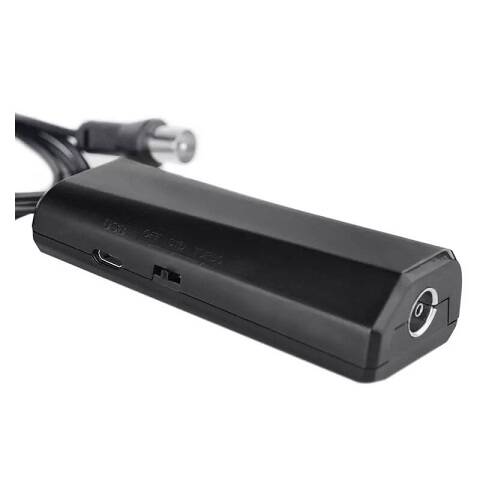

Watching TV should be a pleasant experience. If you've been struggling with occasional interference and noise, this antenna will make it a pleasure. That's because it features an external low-noise amplifier with a separate power supply, as well as LTE and 5G filters that eliminate interfering mobile internet signals in the LTE and 5G bands.

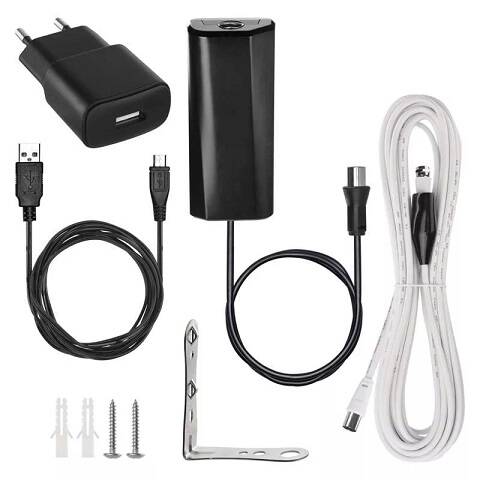

USB adapter and coaxial cable included
The antenna is powered by a universal USB adapter, which allows the antenna to be used where there is no 230 V mains power. The adapter and coaxial cable are included in the package.
Antenna for urban and rural use

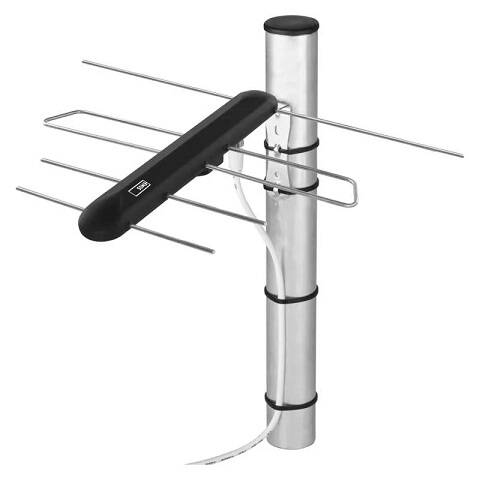

You can easily place the antenna where it suits you best. In fact, it is designed to be set up, hung on a wall or fixed to a pole. It is a good choice for cities, suburbs and places with good signal quality, and should be placed between 0 and 80 kilometres from the transmitter.
