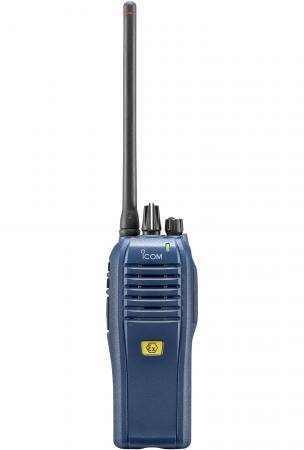

Icom IC-F3202DEX VHF ATEX dPMR Two-Way Handheld Radio (discontinued)
Key features of Icom IC-F3202DEX VHF ATEX dPMR Two-Way Handheld Radio
• Frequency coverage: 136-174MHz
• 16 programmable channels
• 3 programmable buttons
• Lone worker and man down function with built-in motion sensor
• Integrated IDAS dPMR digital system (dPMR mode 1, 2)
• Built-in SEL 2/5, CTCSS, DTCS coder and encoder, DTMF autodial
• Maximum 1W RF output power
• Certified to ATEX protection
• Confirms with IP67 standard (waterproof and dust-tight protection)
• Equivalent to MIL-STD 810 C, D, E, F and G requirements
• 1900mAh Li-ion battery and rapid charger supplied as standard
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.
Further details of Icom IC-F3202DEX VHF ATEX dPMR Two-Way Handheld Radio
• ATEX minig protection: I M2 Ex ib I Mb
• ATEX gas protection: II 2 G Ex ib IIC T4 Gb
• ATEX dust protection: II 2 D Ex ib IIIC T110°C Db
• Up to 21 hours of operating time with the supplied 1900mAh lithium-ion battery pack. (Tx: 5%; Rx:5%; Stand by:90%)
• The radio has outstanding protection against dust and water that is equivalent to IP67. The radio can withstand submersion in 1m depth of water for up to 30 minutes and has dust-tight construction that prevents the ingress of dust.
• dPMR functions: PTT ID (TX); Individual/Group call; Power ON/OFF status call (TX) • Stun/kill/revive (RX); Ambience listening (RX); Emergency (TX); Lone worker/Man down function; Digital voice scrambler; Voting scan for Mode 2 multi-site system
• 16 memory channels with channel announcement function
• Three programmable buttons (including emergency red button)
• Use the built-in CTCSS, DTCS, 2-Tone, 5-Tone, DTMF autodial and BIIS signaling capabilities to set up your talk group or selective calling. The radio can decode ten 2-Tone codes or eight 5-Tone codes on a channel.
• The 5-Tone signalling (encoder/decoder) gives you selective calling, quiet stand-by and other convenient functions with programming. The radio “stun” function disables a radio over the air and the “revive” function restores the stunned radio.
• The optional speaker microphone, HM-203EX, also has waterproof construction equivalent to IP67. The HM-203EX is approved for use with ATEX models.
• Equivalent to MIL-STD 810 C, D, E, F and G requirements
Standard Accessories of Icom IC-F3202DEX VHF ATEX dPMR Two-Way Handheld Radio
Icom FA-SC55V 150-174MHz VHF Antenna
The product is on stock. (10-49 piece(s))
Icom MB-94EX Alligator Type Belt Clip
The product is ordered directly from the manufacturer's headquarters in Germany.
Icom BC-212EX Complete Desktop Charger (discontinued)
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.
Icom BP-277EX ATEX Li-ion Battery (discontinued)
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.
