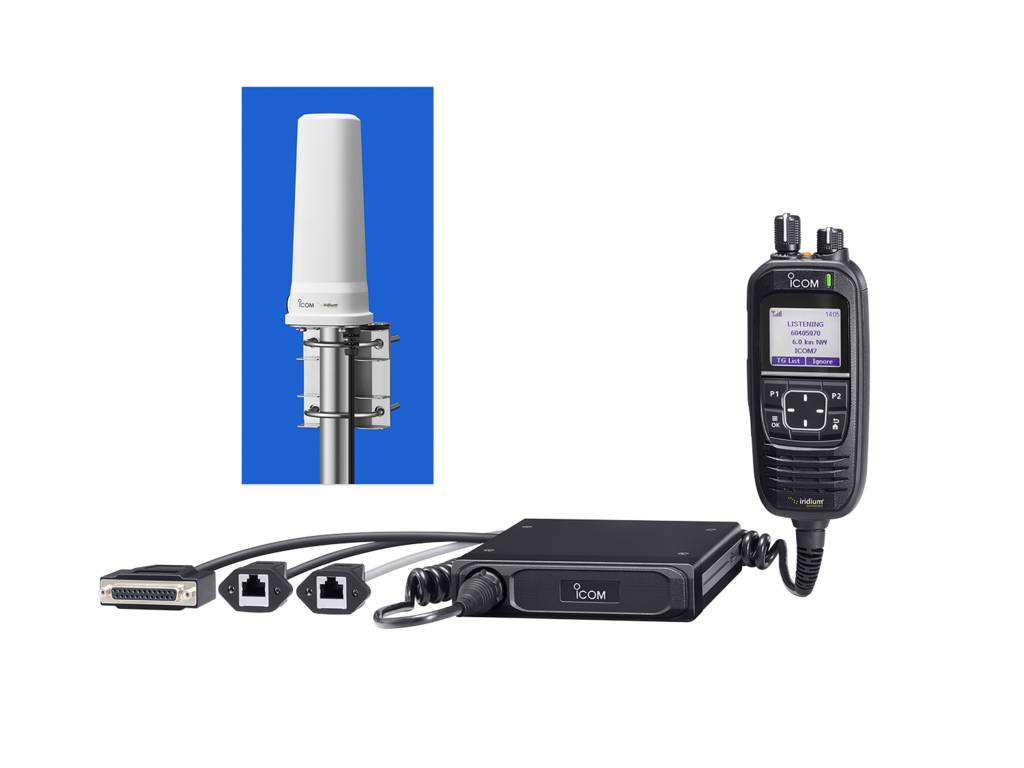

Icom IC-SAT100M Satellite PTT Mobile Radio

Further details of Icom IC-SAT100M Satellite PTT Mobile Radio

• Supplied with antenna, speaker-microphone, OPC-585 DC power cable, OPC-2102 LAN cable (20 m), mobile bracket
• To be ordered separately : Iridium communication contract for 3 months or 1 year term

• In-Building Use: You can flexibly install the radio and the antenna (with RF unit) with only a LAN cable (Maximum 100 m, 328 ft), (User supplied LAN cable is required to replace the supplied 20 m LAN cable). Using PoE (Power over Ethernet) capability, the main unit supplies power to the antenna unit through the LAN cable. Connect your PoE injector or switch to extend the distance between the main unit and the antenna unit. (802.11at compatible)
• Mobile Use: By attaching the antenna on the roof, you can use the radio in a vehicle. The IC-SAT100M has Bluetooth capability, and allows hands-free operation (a third party accessory required), while driving. External speaker connection and ignition sensing are possible.
• Advanced System Example with VE-PG4: The VE-PG4 is a versatile RoIP (Radio over IP network) gateway unit, which seamlessly interconnects satellite PTT radios, PMR radios, LTE radios, WLAN radios, IP phone systems, and external devices. In addition to the IP Network (LAN/WAN), the built-in LTE module (Service availability depends on the country. Network coverage provided by a custom SIM card) provides virtually nationwide communication coverage.
