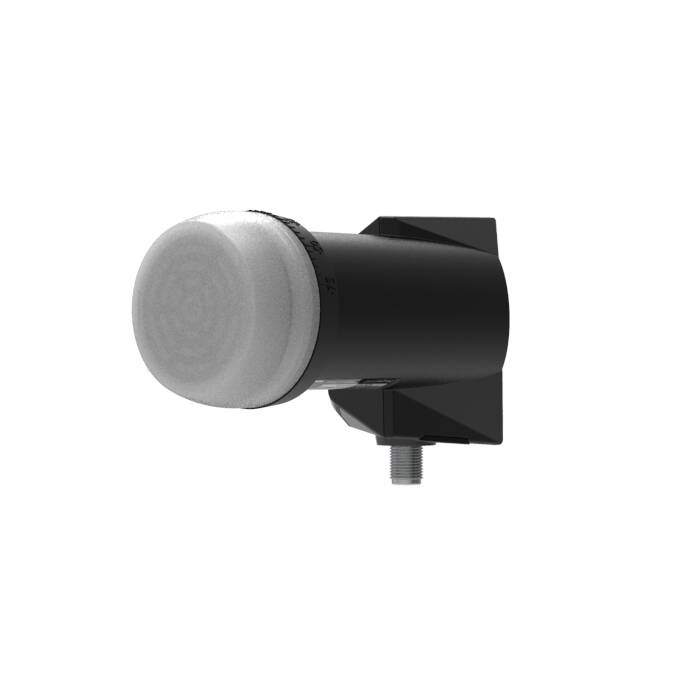

Inverto Black Ultra Single High-Gain LNB Satellite Receiver Head

Further details of Inverto Black Ultra Single High-Gain LNB Satellite Receiver Head

Inverto’s high-performance Ultra LNBs were specifically designed to address the need for superior reception under the edges of the satellite footprint skirt, small dish sizes or long coax cables. Thanks to its novel feed horn design and superior front-end components, this LNB provides higher conversion gain yet with low noise figure and best phase noise performance. The combination of innovative feed horn design, higher spec components, excellent cross polarization isolation and advanced filter design enables improved handling of interfering and spurious signals. This LNB provides a leap in the overall reception performance compared with standard LNBs, enabling the reception of signals from one satellite, its distribution to a single tuner Set-top box and is ready for Ultra High Definition TV transmissions in 4K or 8K resolution. Designed to meet strict specifications and manufactured to the highest industry standards, this unique range of LNBs is an ideal solution for installations with challenging reception conditions.

• Noise figure: 0,2 dB tip (0,7 dB max)
• LO temperature drift ±2.0 MHz max.
• LO phase noise at 10 kHz: -80 dBc/Hz max.
• Conversion gain: 50 dB min.
• Gain ripple (at 26 MHz bandwidth): 1 dB max. (peak-to-peak)
• Gain variation (full band): 4 dB max. (peak-to-peak)
• Image reflection: 50 dB min.
• 3rd order intermodulation - ICP3: 10 dBm min.
• 1 dB compression point (output): 0 dBm min.
• Cross polarisation isolation: 22 dB min.
• Output VSWR: 2.0 : 1 max.
• In-band noise: -65 dBm max.
• Operating temperature: -30 °C ~ +60 °C
• Weight: 111,2 g
