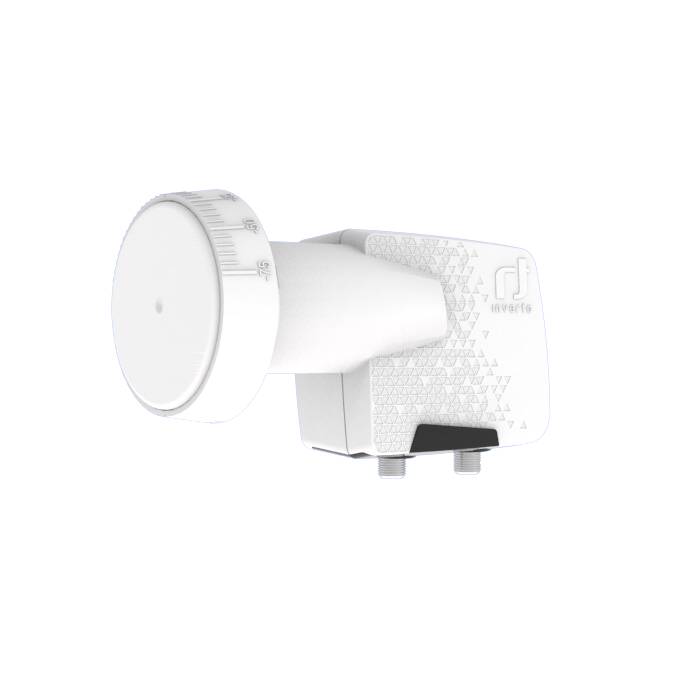

Inverto Home Pro Twin Universal LNB Satellite Receiver Head

Further details of Inverto Home Pro Twin Universal LNB Satellite Receiver Head

Specifically designed to address the demand of the global DTH market for a competitive and 4G/LTE protected solution, this LNB provides optimized reception capabilities using the latest chipset technology and waveguide design for satellite signal reception. It enables the reception of satellite TV from a single satellite and its distribution to a single tuner Set-top box. The LNB supports HD and UHD transmissions, delivers excellent RF performances, very low power consumption and importantly engineered to mitigate interferences from 4G/LTE transmissions. Manufactured to the highest industry quality standards and engineered to meet strict specifications, this LNB is an ideal solution for DTH operators and satellite broadcast reception across the world.

• Noise figure: 0.3 dB tip (0.7 dB max)
• LO frequency accuracy at 25 °C: ±500 kHz max.
• LO temperature drift ±1.0 MHz max.
• LO phase noise at 10 kHz: -80 dBc/Hz max.
• Conversion gain: 55 dB min.
• Gain ripple (at 26 MHz bandwidth): ±0,75 dB
• Gain variation (full band): ±4 dB
• Image reflection: 40 dB min.
• 3rd order intermodulation - ICP3: 10 dBm min.
• 1 dB compression point (output): 0 dBm min.
• Cross polarisation isolation: 22 dB typ.
• Control signal Ca (V): 11,0 V ~ 14,0 V
• Control signal Cb (H): 16,0 V ~ 20,0 V
• Control signal Cc (band change): 22 kHz ±4 kHz , 0,4 V ~ 0,8 V pp
• Output VSWR: 2.5 : 1
• In-band noise: -60 dBm max.
• Operating temperature: -30 °C ~ +60 °C
• Plate F/D ratio: 0.6
• Weight: 218 g
