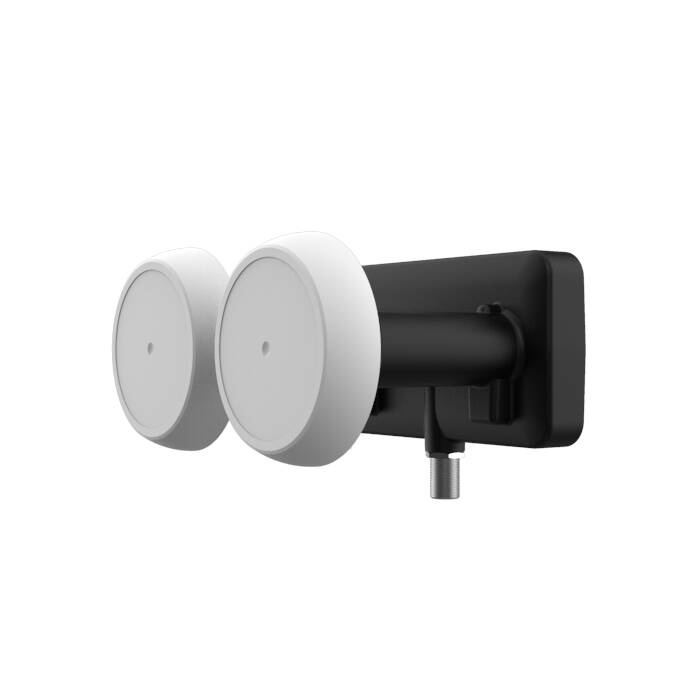

Inverto Single Monoblock LNB Satellite Receiver Head

Further details of Inverto Single Monoblock LNB Satellite Receiver Head

Specifically designed for the European DTH markets, this Monoblock LNB allows for dual satellite reception from orbital positions 13˚E and 19.2˚E over a single 80cm offset satellite dish antenna with F/D = 0.6 and their distribution to one satellite receiver.

• Low energy consumption
• Very high cross polarisation insulation
• Very high frequency stability
• High bandwidth LO frequency: 10.6 GHz
• Noise figure: 0.6 dB tip., 1.0 dB max.
• LO frequency accuracy at 25 °C: ±0.5 MHz max.
• LO initial accuracy: ±0.5 MHz max.
• LO phase noise: -60 dBc/Hz at 1 kHz
• LO phase noise at 10 kHz: -80 dBc/Hz
• LO phase noise at 100 kHz: -90 dBc/Hz
• Conversion gain: 58 dB ~ 68 dB
• Gain ripple (at 26 MHz bandwidth): ±0.75 dB max.
• Gain variation (over the whole band): max. 6 dBpp.
• Image reflection: 50 dB min.
• 1 dB compression point (at output): 0 dBm min.
• Cross-talk: 22 dB min.
• Control, satellite A/B/C/D selection:
• DiSEqC 1.0: B = Astra 19.2°E* Default satellite receptionPolarity info Horizontal polarization: 18 VDC
• Vertical polarization: 13 VDC
• Low band: 0 kHz
• High band: 22 ±4 kHz
• Output VSWR: 2.0 : 1 max.
• In-band noise -65 dBm max.
• Operating temperature: -30 °C ~ +60 °C
• Weight 225 g
