PNI Escort HP 8001L ASQ AM/FM CB Radio (discontinued)

PNI-014-999

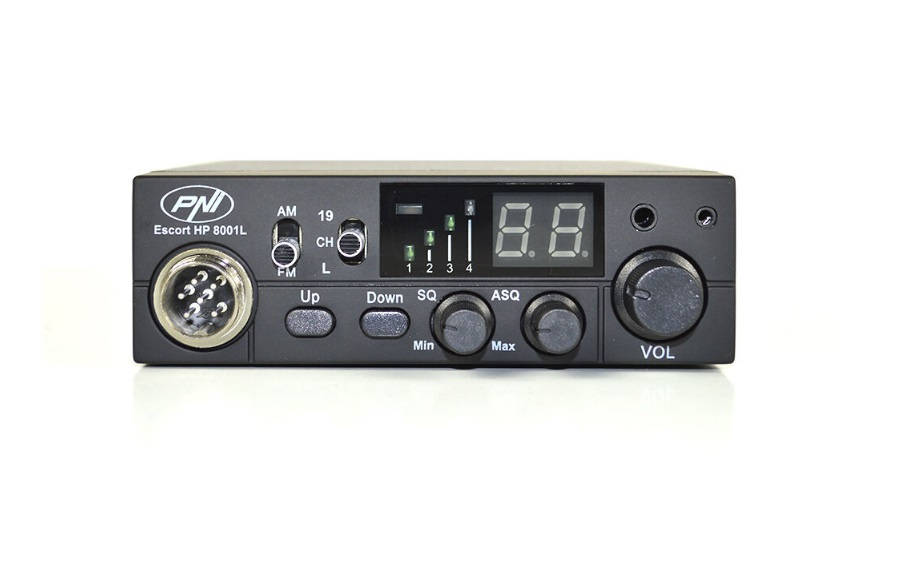

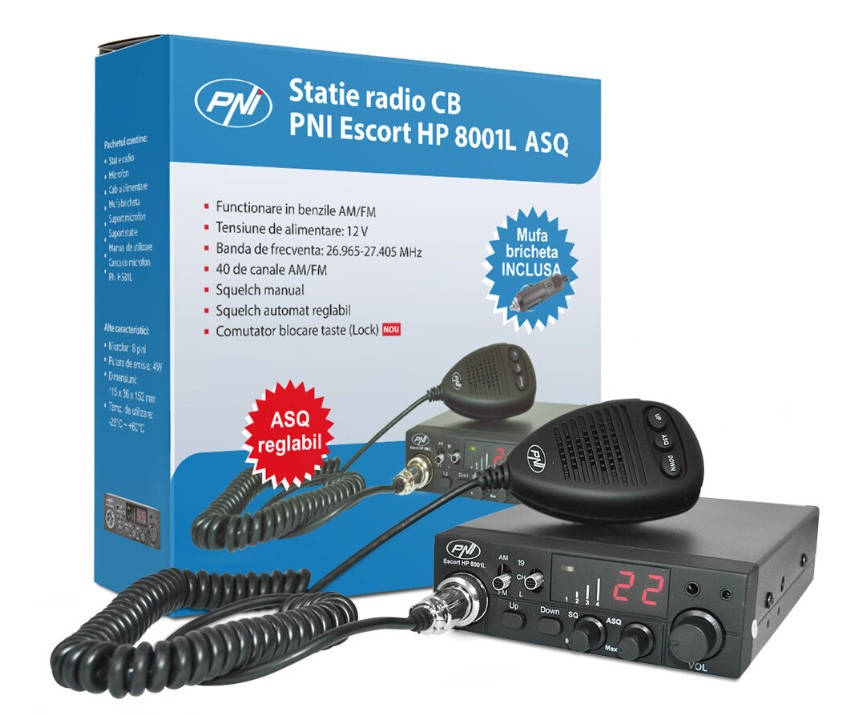

PNI Escort HP 8001L ASQ AM/FM CB Radio
PNI Escort HP 8001L ASQ AM/FM CB RadioPNI Escort HP 8001L ASQ AM/FM CB RadioPNI Escort HP 8001L ASQ AM/FM CB Radio

Key features of PNI Escort HP 8001L ASQ AM/FM CB Radio

• Channels 40 AM/FM
• Frequency band: 26.965 – 27.405 MHz
• Frequency control: P.L.L.
• Operating temperature: -26° - +65°C
• Power supply: 13.8Vdc ±15%
• Dimensions / weight: 115 x 36 x 152 mm / 0.8 kg
• Intermediate frequency: 1° 10.7 MHz / 2° 450 KHz
• Sensitivity: -120dBm / 12dB SINAD (FM) -107dBm / 12dB SINAD (AM)
• Audio output: @10% THD 2.5W la 8 ohm
• Audio distortion: <8% at 1 KHz
• Image rejection: 65 dB
• Canal adjacent: 85 dB
• Current consumption: 200 mA in stand-by
• Maximum RF power: 4W FM at 13.8Vdc
• Modulation: 85% ~ 90% (AM) 3KHz ±0.2 KHz (FM)
• Antenna Impedance: 50 Ohm
• Current consumption: 2A

This product is not available.
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.
