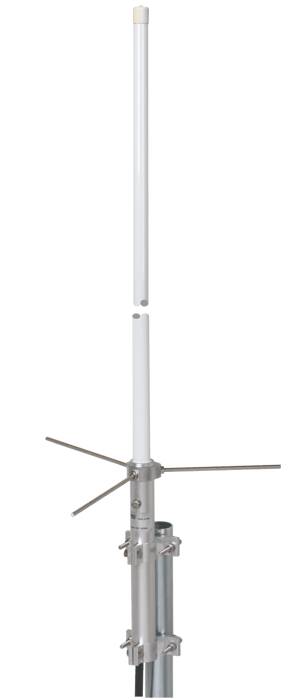

Sirio SA 703-N UHF Base Antenna

SIR-146-999
Sirio SA 703-N UHF Base Antenna

Key features of Sirio SA 703-N UHF Base Antenna

• Type: 3x5/8λ ground plane colinear
• Frequency range @ SWR ≤2: 427-443 MHz
• Impedance: 50Ω
• Radiation (H-plane): 360° omnidirectional
• Radiation (E-plane): beamwidth @ -3 dB = 24°
• Radiation angle: 0°
• Polarization: linear vertical
• Gain: 4.6 dBd, 6.75 dBi
• Max. Power (CW) @ 30°C: 200 Watts
• Grounding protection: All metal parts are DC-grounded, the inner conductor is coupled capacitively
• Connector: N-female, gold plated central pin

Gross price (including 27% VAT): 119.24€ (Net price: 93.89€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.

Further details of Sirio SA 703-N UHF Base Antenna

• Materials: Fiberglass, Aluminium, Brass, Stainless Steel
• Wind resistance: 180 Km/h
• Wind load: 56 N at 150 Km/h
• Wind surface: 0.05 m²
• Height (approx).: 1780 mm
• Weight (approx.): 900 gr
• Radial length (approx.): 170 mm
• Mounting mast: Ø 35-54 mm
