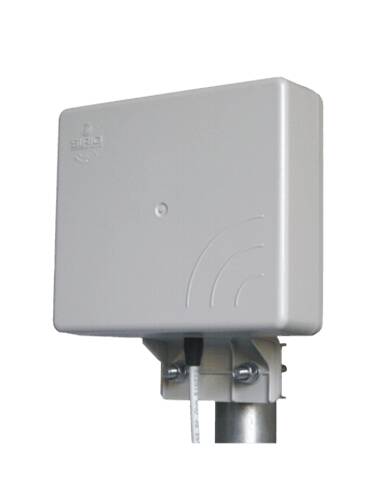

Sirio SMP WiMAX 2,4Ghz & 3,6Ghz Base Antenna

SIR-033-999
Sirio SMP WiMAX 2,4Ghz & 3,6Ghz Base Antenna

Key features of Sirio SMP WiMAX 2,4Ghz & 3,6Ghz Base Antenna

• Type: Mini panel antenna
• Frequency range: 2.3-2.7 GHz & 3.3-3.8 GHz for WiMAX 2.3-2.7, WiMAX 3.3-3.8 and WLan 2.4 systems
• Impedance: 50Ω
• Radiation (H-plane): beamwidth @ -3 dB = 35° @ 2.5GHz; 28° @ 3.55GHz
• Radiation (E-plane): beamwidth @ -3 dB = 60° @ 2.5GHz; 37° @ 3.55GHz
• Radiation angle: 0°
• Front to back ratio: ≥ 15 dB @ 2.3-2.7 GHz; ≥ 20 dB @ 3.3-3.8 GHz
• Polarization: linear vertical
• Gain: 10 dBi @ 2.3-2.7 GHz; 13 dBi @ 3.3-3.8 GHz
• SWR in bandwidth: ≤ 1.8
• Max. power (CW) @ 30°C: 6 Watts
• Cable lenght / type: White Low Loss / 30 cm
• Connector: SMA-male

The product is on stock. (1-4 piece(s))
Gross price (including 27% VAT): 81.77€ (Net price: 64.39€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.
2 year(s) warranty Based on product sizes and weight, considering the minimal order quantity, this product is eligible for delivery to GLS parcel machines in Hungary.
Sirio_WiMAX.pdf
English prospectus

2 year(s) warranty Based on product sizes and weight, considering the minimal order quantity, this product is eligible for delivery to GLS parcel machines in Hungary.

Further details of Sirio SMP WiMAX 2,4Ghz & 3,6Ghz Base Antenna

• Housing & Radome material: RAL 7035 grey thermoplastic UV stabilized
• Bracket & Hardware material: Galvanized steel
• Wind load / resistance: 40 N @ 150 Km/h / 180 Km/h
• Wind surface: 0.02 m²
• Dimensions (approx.): 154 x 134 x 46 mm without bracket
• Weight (approx.): 420 gr
• Operating temperature: -20° C to +80° C
• Installation type: mounting mast: Ø 25-42 mm whit U-bolt; wall: mounting screw (not included)
