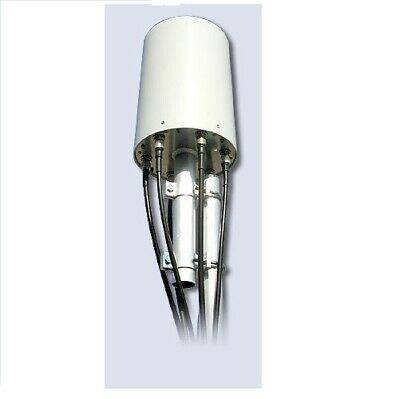

Sirio SMS 2.4X4-11 2,4Ghz WiFi Base Station Multi Sector Antenna (discontinued)

Name: SMS 2.4X4-11 2,4Ghz WiFi Base Station Multi Sector Antenna
Brand: Sirio
SKU: SIR-183-999
Price: 238.11 EUR
Availability: Discontinued

SIR-183-999

Key features of Sirio SMS 2.4X4-11 2,4Ghz WiFi Base Station Multi Sector Antenna

• Type: Multi sector dipole array
• Frequency range: 2.4-2.485 GHz for WLAN system
• Impedance: 50Ω
• Radiation (H-plane): beamwidth @ -3 dB = 84° @ 2442.5 MHz
• Radiation (E-plane): beamwidth @ -3 dB = 25° @ 2442.5 MHz
• Radiation angle: 0°
• Front to back ratio: ≥ 20 dB
• Isolation: ≥ 30 dB (between any two port)
• Polarization: linear vertical
• Gain: 8.9 dBd - 11 dBi
• SWR in bandwidth: ≤ 1.5
• Max. power (CW) @ 30°C: 20 Watts
•Grounding protection: All metal part are DC-grounded, the inner conductor shows a DC-short
• Connector: 4 x N-female

This product is not available.
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.

English prospectus

Further details of Sirio SMS 2.4X4-11 2,4Ghz WiFi Base Station Multi Sector Antenna

• Housing materials: Aluminium, Stainless Steel, PCB
• Radome material: Grey thermoplastic UV stabilized
• Wind load / resistance: 94 N @ 150 Km/h / 180 Km/h
• Wind surface: 0.08 m²
• Height (approx.): 600 mm
• Radome diameter: Ø 216 mm
• Weight (approx.): 2300 gr
• Operating temperature: -40° C to +80° C
• Mounting mast: Ø 35-52 mm
