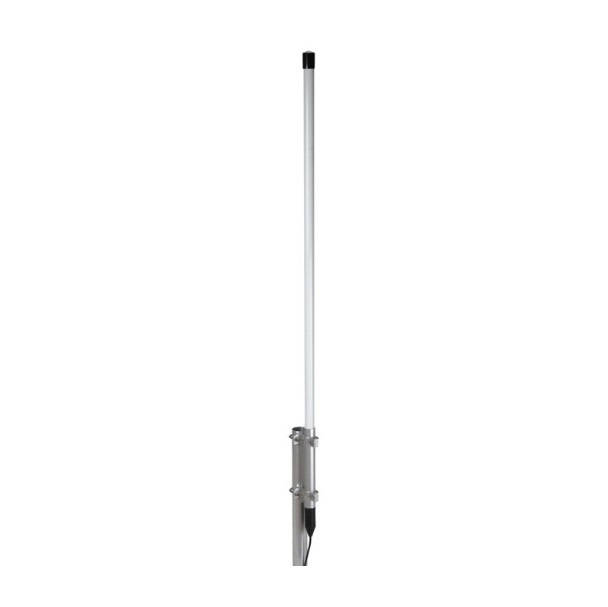

Sirio SPO 420-5 UHF Base Antenna

SIR-010-999
Sirio SPO 420-5 UHF Base Antenna

Key features of Sirio SPO 420-5 UHF Base Antenna

• Type: colinear
• Frequency range @ SWR ≤2: 420-470 MHz
• Impedance: 50Ω
• Radiation (H-plane): 360° omnidirectional
• Radiation (E-plane): beamwidth @ -3 dB = 40°
• Radiation angle: 0°
• Polarization: linear vertical
• Gain: 3 dBd, 5.15 dBi
• Max. Power (CW) @ 30°C: 75 Watts
• Grounding protection: All metal parts are DC-grounded, the inner conductor shows a DC-short
• Connector: N-female with rubber protection cap

Gross price (including 27% VAT): 183.48€ (Net price: 144.47€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.

Further details of Sirio SPO 420-5 UHF Base Antenna

• Materials: White fiberglass radome Ø 28.6mm, anodized 6063-t5 aluminium, brass, stainless steel, copper, EPDM rubber
• Wind resistance: 180 Km/h
• Wind load: 53 N at 150 Km/h
• Wind surface: 0.044 m²
• Height (approx).: 1380 mm
• Weight (approx.): 1200 gr
• Operating temperature: -40°C to +80°C
• Mounting mast: Ø 35-54 mm
