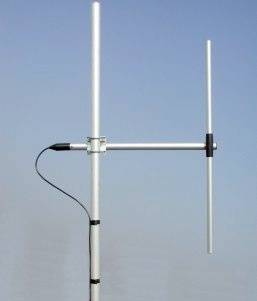

Sirio WD 155-N Dipole VHF Base Antenna

SIR-171-999
Sirio WD 155-N Dipole VHF Base Antenna

Key features of Sirio WD 155-N Dipole VHF Base Antenna

• Type: dipole
• Frequency range @ SWR ≤1.5: 155-175 MHz
• Impedance: 50Ω
• Radiation (H-plane): beamwidth @ -3 dB = 245°
• Radiation (E-plane): beamwidth @ -3 dB = 85°
• Front to back ratio: ≥ 5 dB
• Polarization: linear vertical
• Gain: 1.85 dBd, 4 dBi
• Max. Power (CW) @ 30°C: 200 Watts
• Grounding protection: All metal parts are DC-grounded, the inner conductor shows a DC short
• Connector: N-female with rubber protection cap

Gross price (including 27% VAT): 113.32€ (Net price: 89.23€)
Special gross price: 90.66€ (Net price: 71.38€)
20,00% discount
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.

Further details of Sirio WD 155-N Dipole VHF Base Antenna

• Materials: Anodized 6063-T5 Aluminium, EPDM rubber, thermoplastic UV stabilized, Chromed brass
• Wind resistance: 200 Km/h
• Wind load: 77 N at 150 Km/h
• Wind surface: 0.059 m²
• Dimensions (L x W approx.): 730 x 835 mm
• Weight (approx.): 1390 gr
• Tourning radius: 600 mm
• Operating temperature: -40° C to +60° C
• Mounting mast: Ø 35-52 mm
