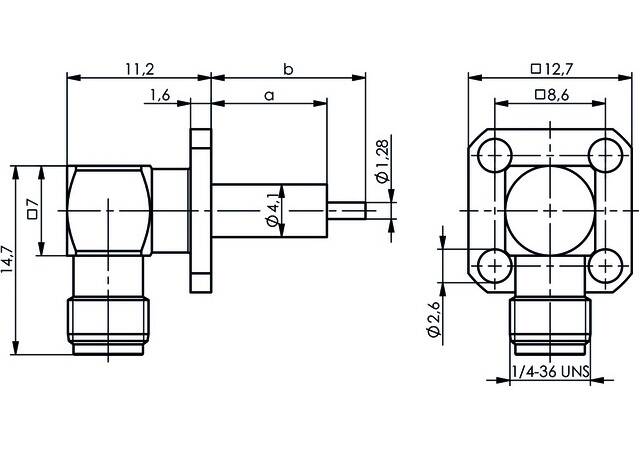

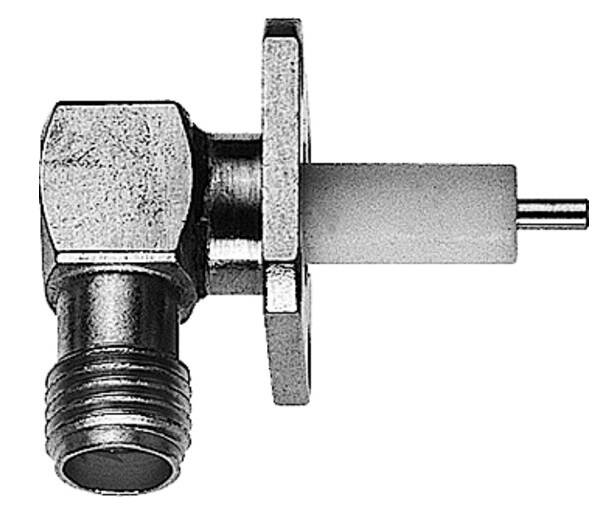

Telegartner SMA Socket 4 Drilled 90° J01151A0651

Further details of Telegartner SMA Socket 4 Drilled 90° J01151A0651

• Contact resistance internal conductor: ≤ 3 mΩ
• Contact resistance external conductor: ≤ 2 mΩ
• Insulation resistance: ≥ 5 GΩ
• Frequency range for flexible cable: 12,4 GHz
• Frequency range for semi-rigid cable (up to straight style): 18 GHz
• Frequency range for semi-rigid cable up to (angle style): 12,4 GHz

The SMA series is a very popular coax connector with threaded coupling, and can be used up to frequencies of over 18 GHz (depending on type). The impedance is controlled at 50 Ω. Connector styles are available for flexible, conformable and semi-rigid cable types. Versions of the SMA connector are available for mounting to printed circuit boards using both through-hole soldered and through-hole press-fit techniques, as well as surface mount types (SMD). Solder, crimp and clamp techniques are used to terminate this series to cables. SMA applications include communications, satellite and test equipment.

Mating face sealing for SMA connectors between plug and jack (mated) according to IP 68. This classification is a general statement for the relevant series. Individual connectors may deviate from the values shown. If in doubt, please consult our engineers.
