Televes Crocodile 88-1006 MHz Antenna Amplifier 25 dB

TRI-100-999
Televes Crocodile 88-1006 MHz Antenna Amplifier 25 dB
Televes Crocodile 88-1006 MHz Antenna Amplifier 25 dBTeleves Crocodile 88-1006 MHz Antenna Amplifier 25 dB

Key features of Televes Crocodile 88-1006 MHz Antenna Amplifier 25 dB

• Output: F connector
• Frequency range: 5-65 MHz, 88-1006 MHz
• Gain: -1 - 25 dBi
• Gain adjustment range: 0 - 18 dBi
• Output level DIN45004B: 116 dBμV
• Noise figure: 5 dB
• Input voltage: 220/230V
• Mains frequency: 50 Hz / 60 Hz
• Max. current: 24 mA
• Max. power consumption: 2,4 W
• Operating temperature: -5-45 °C

The product is on stock. (1-4 piece(s))
Gross price (including 27% VAT): 43.55€ (Net price: 34.29€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.
2 year(s) warranty Based on product sizes and weight, considering the minimal order quantity, this product is eligible for delivery to GLS parcel machines in Hungary.
televes-crocodile-amplifier-brochure.pdf
English prospectus

televes-crocodile-amplifier-specification.pdf
English prospectus

2 year(s) warranty Based on product sizes and weight, considering the minimal order quantity, this product is eligible for delivery to GLS parcel machines in Hungary.

Further details of Televes Crocodile 88-1006 MHz Antenna Amplifier 25 dB

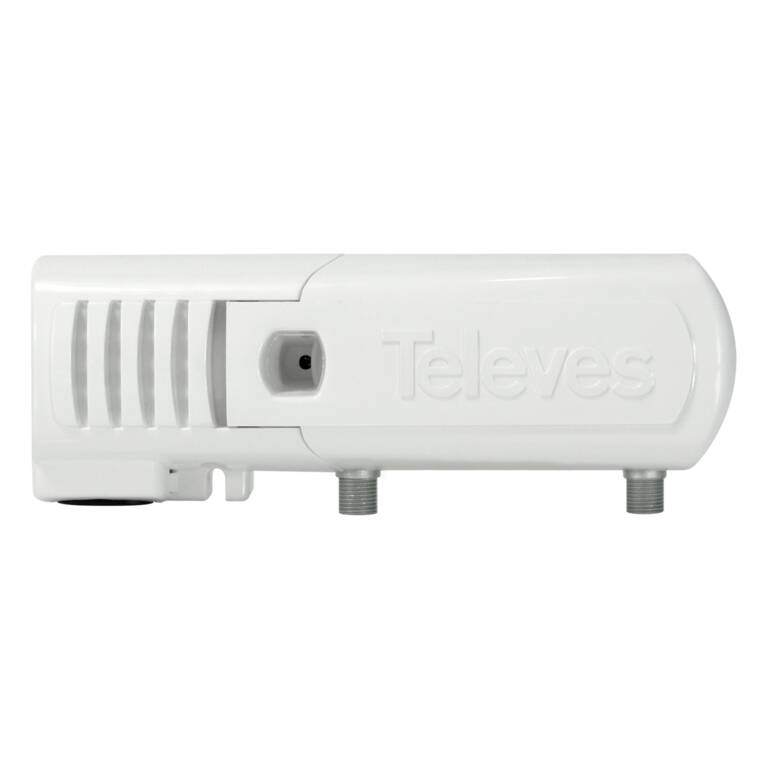

Antenna amplifier with 1 output to extend the terrestrial television domestic network. Amplifies and equalizes the terrestrial band and provides a passive return channel to allow communication between the subscriber modem and the operator.


• Passive return channel 5 MHz - 65 MHz
• Low-impact visual design and limited size
• Integrated high-performance switched-mode power supply
• Fully automated manufacturing subject to the most stringent quality controls
• Can be wall-mounted using screws
