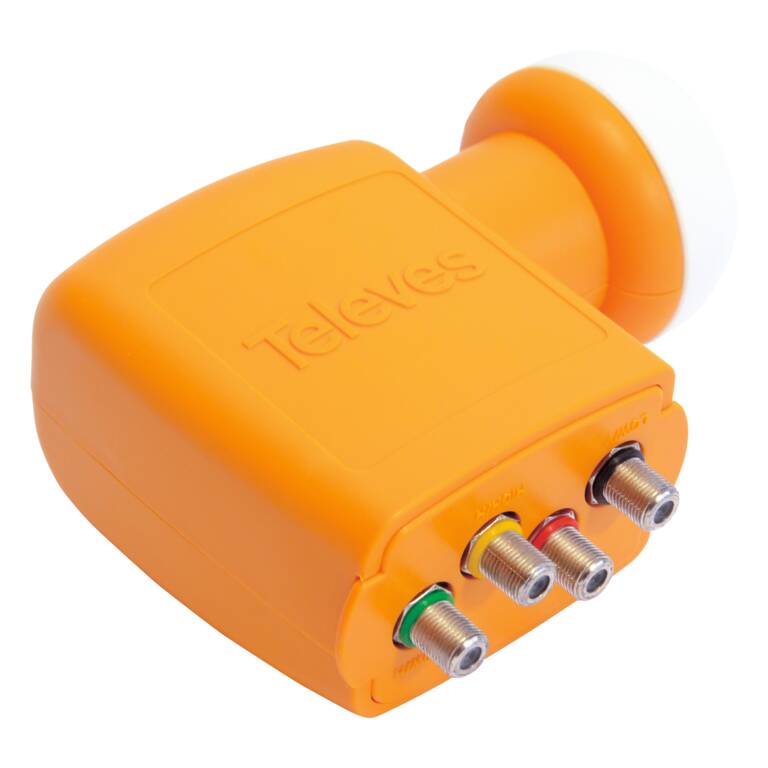

Televes Quattro LNB Offset Universal Satellite With 4 Different Output
Key features of Televes Quattro LNB Offset Universal Satellite With 4 Different Output
• Frequency range: 10.7-12.75 Ghz
• L.O. frequency: 9.75 Ghz
• Gain: 60 dBi
• Noise figure: 0,3
• Low band LO frequency: 9,75 Ghz
• High band LO frequency: 10,6 Ghz
• Impedance: 75 Ω
• LNB-bracket diameter: 40mm
• Equipped with fully encapsulated, weatherproof housing
• Connectors: Female
• For connecting four indoor satellite receiver unit
• Max current: 245 mAh
Further details of Televes Quattro LNB Offset Universal Satellite With 4 Different Output
Quatro LNB converter, equipped with four outputs, each with one specific polarity/band combination. Each output is marked with the respective colour: black for Vl, red for Vh, yellow for Hh, and green for Hl.
• Low visual impact design and small casing
• Outstanding linearity and careful equalization
• Very high IP protection index (IP66)
• Can be used under extreme temperature conditions
• Light-weight
• Compatible with 40-mm supports
• Low power consumption
• Power feeding either through the receiver or the multiswitch
• Simple connection
• Multisatellite-compatible solutions
• Operating temperature: -30°C - + 60°C
