Antenna Accessory LNB Head for Satellite Dish

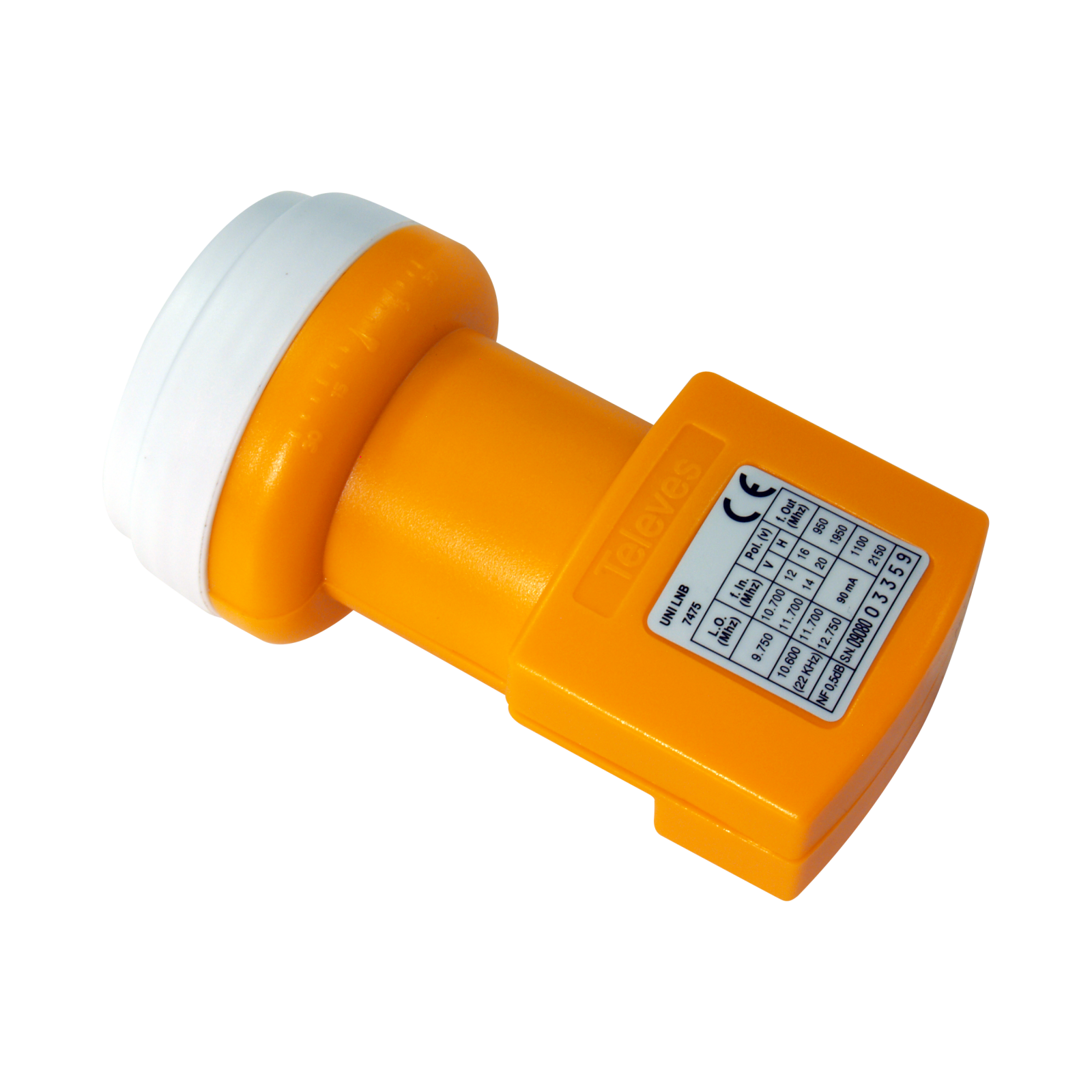

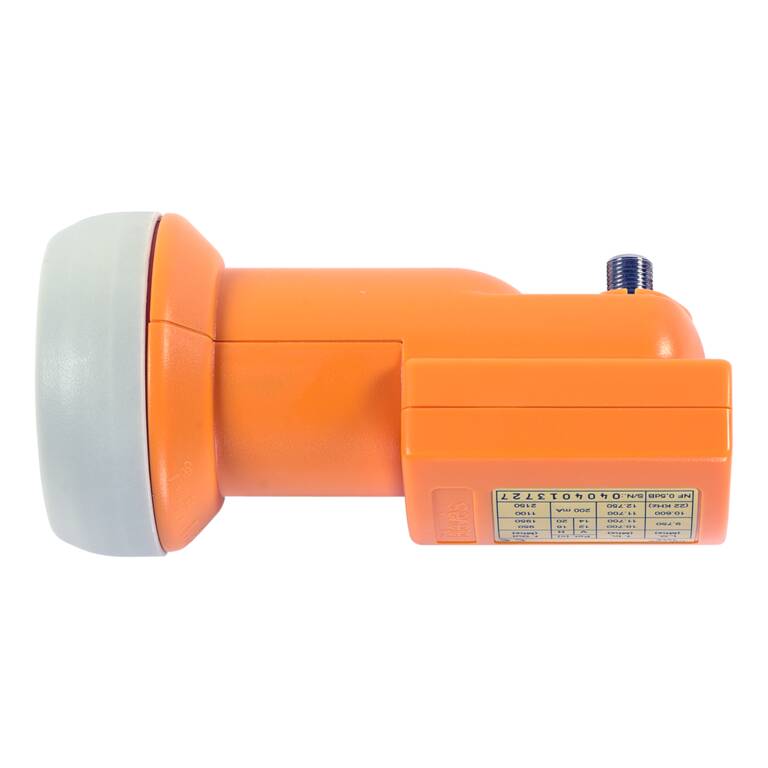

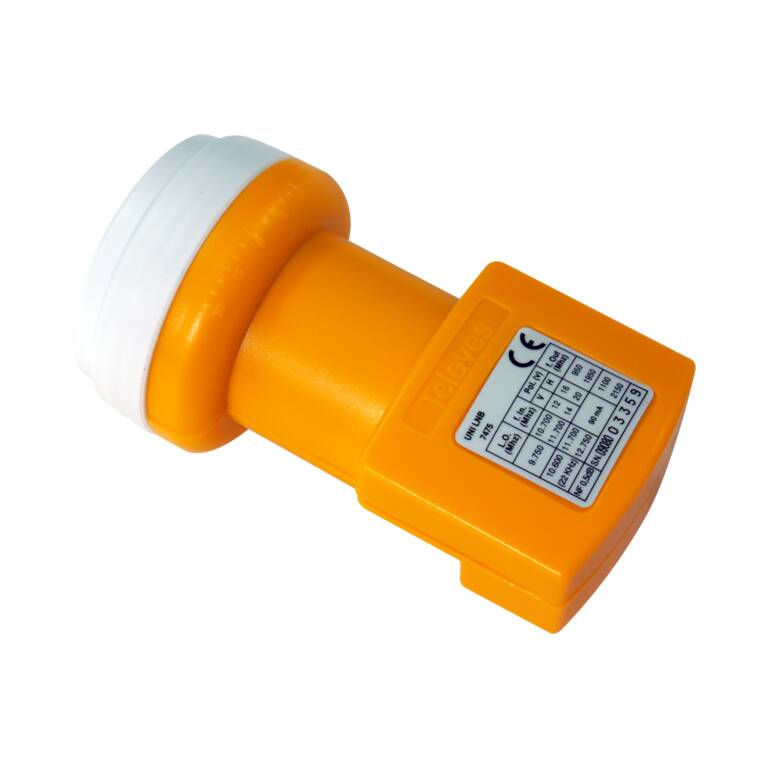

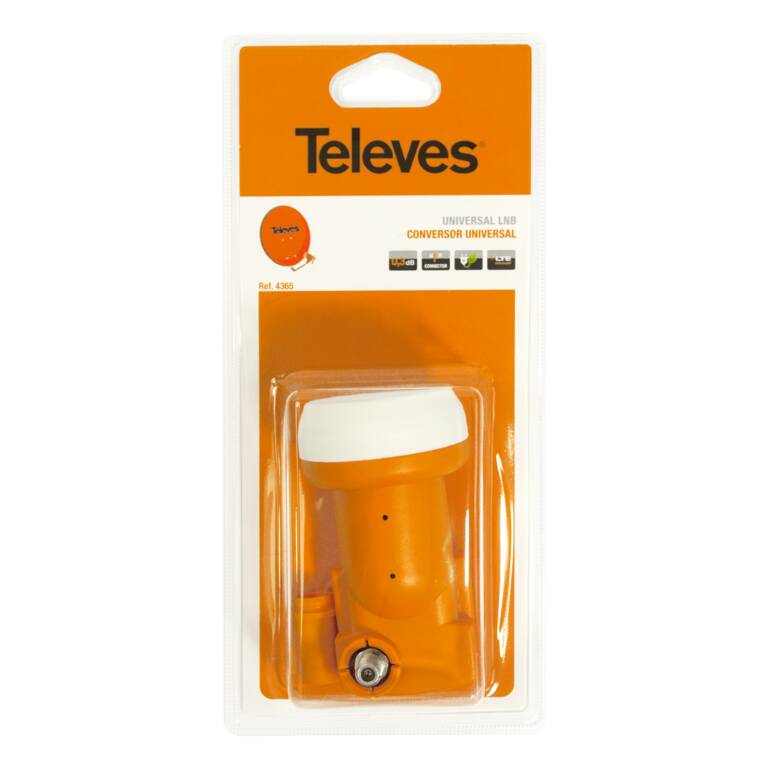

Televes Single LNB Universal Satellite Receiver Head

TRI-092-999
Televes Single LNB Universal Satellite Receiver Head
Televes Single LNB Universal Satellite Receiver Head Televes Single LNB Universal Satellite Receiver Head Televes Single LNB Universal Satellite Receiver Head
Televes Single LNB Universal Satellite Receiver Head

Key features of Televes Single LNB Universal Satellite Receiver Head

• Frequency range: 10.7-12.75 Ghz
• L.O. frequency: 9.75 Ghz
• Gain: 60 dBi
• Noise figure: 0,3
• Low band LO frequency: 9,75 Ghz
• High band LO frequency: 10,6 Ghz
• Impedance: 75 Ω
• LNB-bracket diameter: 40mm
• Equipped with fully encapsulated, weatherproof housing
• Connectors: Female
• Max current: 110 mAh

The product is on stock. (1-4 piece(s))
Gross price (including 27% VAT): 5.02€ (Net price: 3.95€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.
1 year(s) warranty There is a video available for this product Based on product sizes and weight, considering the minimal order quantity, this product is eligible for delivery to GLS parcel machines in Hungary.
televes-lnb-single-specification.pdf
English prospectus

televes-lnb-single.pdf
English prospectus

1 year(s) warranty There is a video available for this product Based on product sizes and weight, considering the minimal order quantity, this product is eligible for delivery to GLS parcel machines in Hungary.

Further details of Televes Single LNB Universal Satellite Receiver Head

Single LNB converter, equipped with a single output and the four polarity/band combinations (Hh, Hl, Vh, Vl).


• Low visual impact design and small casing
• Outstanding linearity and careful equalization
• Very high IP protection index (IP66)
• Can be used under extreme temperature conditions
• Light-weight
• Compatible with 40-mm supports
• Low power consumption
• Power feeding either through the receiver or the multiswitch
• Simple connection
• Multisatellite-compatible solutions
• Operating temperature: -30°C - + 60°C
