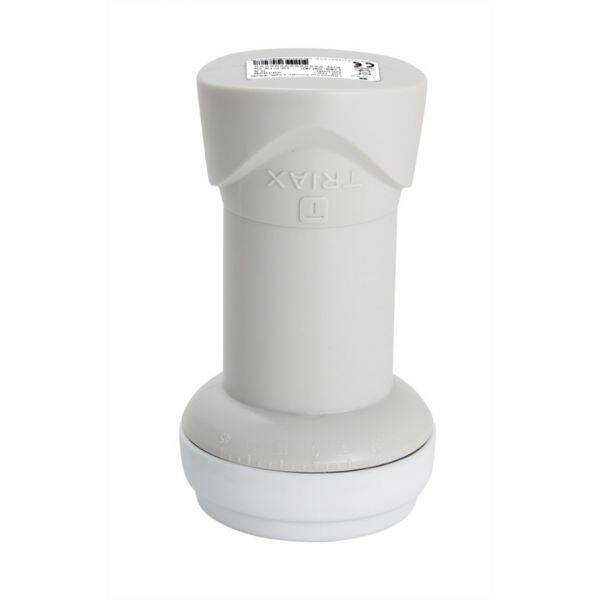

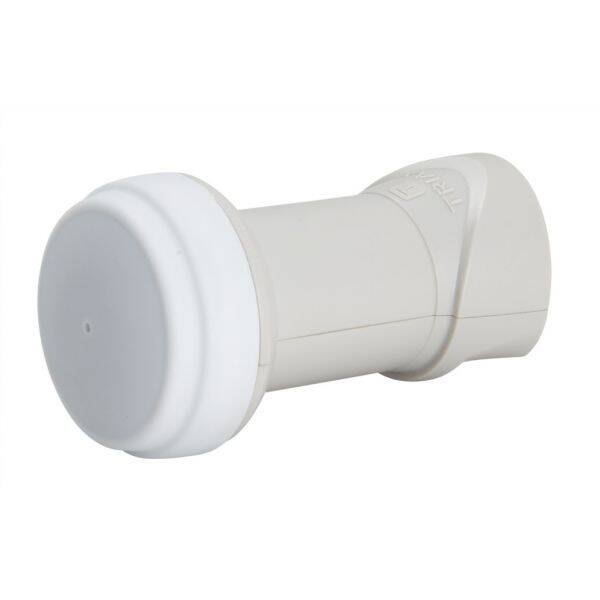

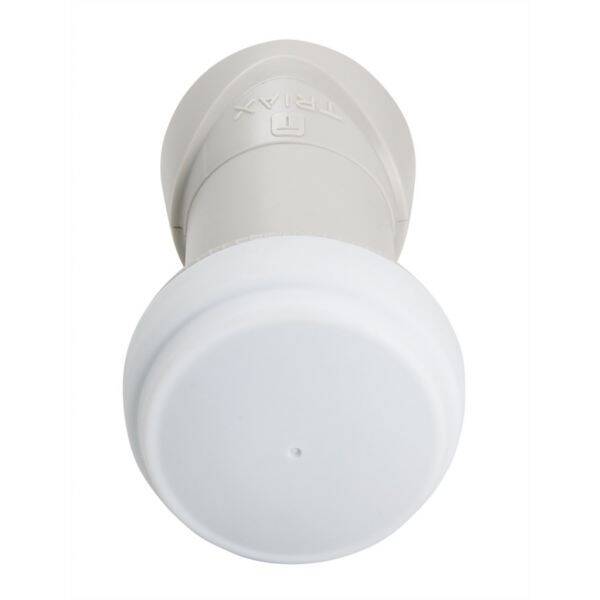

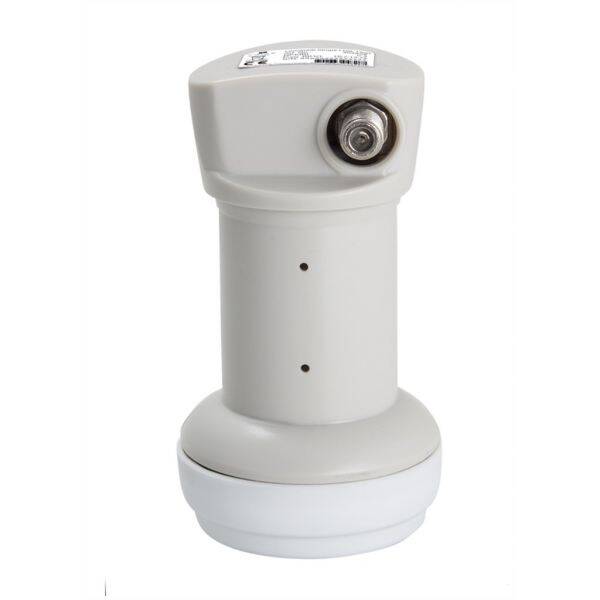

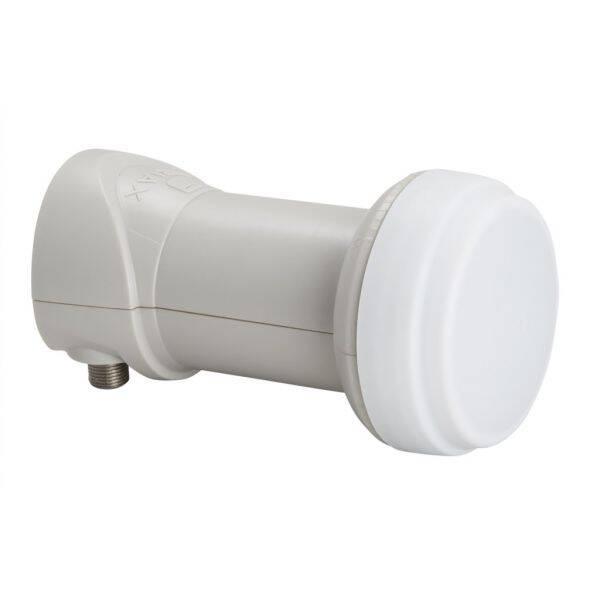

Triax CS 300 S Univerzális Single LNB Satellite Receiver Head

(discontinued)
TRI-004-999
Triax CS 300 S Univerzális Single LNB Satellite Receiver Head
Triax CS 300 S Univerzális Single LNB Satellite Receiver HeadTriax CS 300 S Univerzális Single LNB Satellite Receiver HeadTriax CS 300 S Univerzális Single LNB Satellite Receiver Head
Triax CS 300 S Univerzális Single LNB Satellite Receiver Head

Key features of Triax CS 300 S Univerzális Single LNB Satellite Receiver Head

• Impedance: 75 Ω
• Input frequency lower band: 10.7-11.7 GHz
• Input frequency high band: 11.7-12.75 GHz
• Output frequency low band: 950-2150 MHz
• DC current consumption: 100 mA• Dimensions: 110 mm (height) x 62 mm (width) x 62 mm (depth) x 40 mm (feedhorn diameter)
• Net weight: 0,111 kg
• Manufacturer's article number: 304 828 TSID 006/CS 300 S
• One indoor satellite receiver unit can be connected

This product is not available.
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.
1 year(s) warranty Based on product sizes and weight, considering the minimal order quantity, this product is eligible for delivery to GLS parcel machines in Hungary.
Triax_univerzalis_Single_LNB__TSID_catalog_en.pdf
English prospectus

1 year(s) warranty Based on product sizes and weight, considering the minimal order quantity, this product is eligible for delivery to GLS parcel machines in Hungary.

Further details of Triax CS 300 S Univerzális Single LNB Satellite Receiver Head

• Operating voltage vertical: 10.5-14.5 V/DC
• Operating voltage horizontal: 15.5-21.0 V/DC
• VSWR output: 2.0:1
• Reflector type: offset
• LO frequency low band: 9,75 GHz
• LO frequency high band: 10.6 GHz
• Smoothness gain (in the 26 MHz segment)5 dB
• Conversion gain (typical): 55...65 dB
• Noise signal max: ≤ 1,0 dB
• Cross polarization isolation: 20 dB
• Colour: RAL 7035 light grey
• LO temperature drifting: ± 3 MHz
• Phase noise room temperature: 1 kHz- 60 dBc/Hz
• Phase noise room temperature: 10 kHz- 80 dBc/Hz
• Phase noise room temperature: 100 kHz- 100 dBc/Hz
• False level: - 60 (max.) dBm
• Image rejection (min): 40 dB
• High quality, low footprint
• Cutting edge RF technology
• Excellent cross-pole isolation
• Excellent low noise / low phase noise
• High performance / low power consumption
• Weatherproof and suitable for harsh environments
