Antenna Accessory LNB Head for Satellite Dish

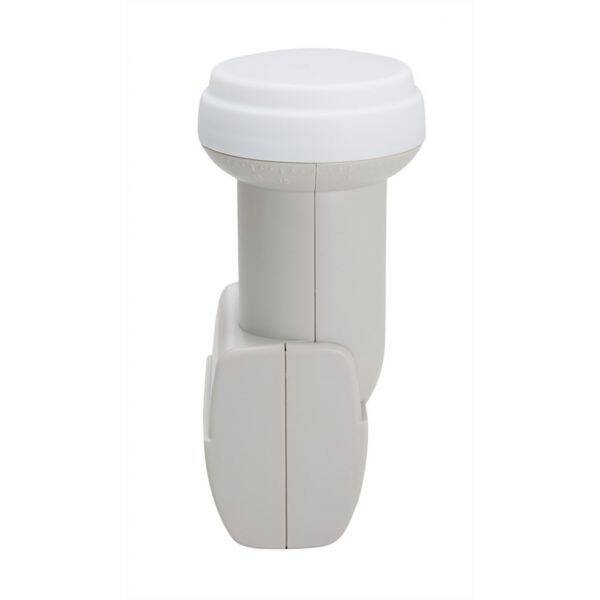

Triax CS 320 Universal Twin LNB Satellite Receiver Head

TRI-005-999
Triax CS 320 Universal Twin LNB Satellite Receiver Head
Triax CS 320 Universal Twin LNB Satellite Receiver HeadTriax CS 320 Universal Twin LNB Satellite Receiver HeadTriax CS 320 Universal Twin LNB Satellite Receiver Head

Key features of Triax CS 320 Universal Twin LNB Satellite Receiver Head

• Impedance: 75 Ω
• Input frequency lower band: 10.7-11.7 GHz
• Input frequency high band: 11.7-12.75 GHz
• Output frequency low band: 950-2150 MHz
• DC current consumption: 180 mA
• VSWR output2,0:1
• LNB type: double
• Dimensions: 130 mm (height) x 60 mm (width) x 80 mm (depth) x 40 mm (feedhorn diameter)
• Net weight: 0.208 kg
• Manufacturer's article number: 304 831 TTWD 006 / CS 320 T
• Suitable for connecting two indoor satellite receiver units

The product is ordered directly from the Hungarian importer. The lead time is approximately 2-3 business days if the product is in stock, otherwise it is subject to confirmation by the importer.
Gross price (including 27% VAT): 10.53€ (Net price: 8.29€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.
1 year(s) warranty Based on product sizes and weight, considering the minimal order quantity, this product is eligible for delivery to GLS parcel machines in Hungary.
Triax_univerzalis_TWIN_LNB__TTWD_catalog_en.pdf
English prospectus

1 year(s) warranty Based on product sizes and weight, considering the minimal order quantity, this product is eligible for delivery to GLS parcel machines in Hungary.

Further details of Triax CS 320 Universal Twin LNB Satellite Receiver Head

• Operating voltage vertical: 10.5-14.5 V/DC
• Operating voltage horizontal: 15.5-21.0 V/DC
• Reflector type: offset
• LO frequency low band: 9,75 GHz
• LO frequency high band: 10.6 GHz
• Smoothness gain (in the 26 MHz segment)5 dB
• Conversion gain (typical): 55-65 dB
• Noise signal max: type 0,3 dB
• Cross polarization isolation: 20 dB
• Colour: RAL 7035 light grey
• LO temperature drifting: ± 3 MHz
• False level: - 60 (max.) dBm
• Image rejection (min): 40 dB
• High quality, low footprint
• Cutting edge RF technology
• Excellent cross-pole isolation
• Excellent low noise / low phase noise
• High performance / low power consumption
• Weatherproof and suitable for harsh environments
