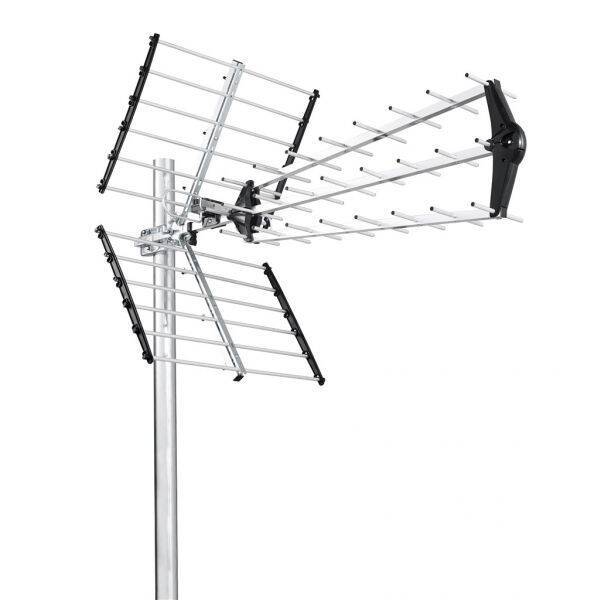

Triax Digi 343 PLUS LTE 700 DVB-T Antenna, F-Connector (discontinued)

Name: Digi 343 PLUS LTE 700 DVB-T Antenna, F-Connector
Brand: Triax
SKU: TRI-009-999
Price: 50.52 EUR
Availability: Discontinued

TRI-009-999

Key features of Triax Digi 343 PLUS LTE 700 DVB-T Antenna, F-Connector

• Band: UHF
• Impedance: 75 Ω
• Channels: 21-48
• Frequency range UHF: 470-694 MHz
• LTE protection: 700Mhz
• Elements: 26
• Wind load: 42 m/s150 N
• Horizontal beam width: ±19°
• Beamwidth vertical: ±23 °
• Main material: aluminium
• Long: 1067 mm long
• Net weight: 2.000 kg
• Gain: 11-15 dBi
• Rejection: 788 MHz (channel 60): 15 dB
• Front-to-back ratio horizontal: 15-25 dB

This product is not available.
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.

English prospectus

Further details of Triax Digi 343 PLUS LTE 700 DVB-T Antenna, F-Connector

The Digi 343 is optimised for maximum gain of 21-48 in the 470-694 MHz frequency range. Above 694 MHz the antenna rolls down, protecting the installation against LTE 700/800 interference. The Digi 343 E21-48 covers the same features that have made other TRIAX antennas successful, including:

• Easy installation
• High performance antenna
• Stable and strong construction
• Specifically designed for HDTV digital reception
• F-connector

Innovative folding design reduces space requirements and improves logistics. The Digi 343 E21-48 features the "LTE Protected - by TRIAX" logo.
