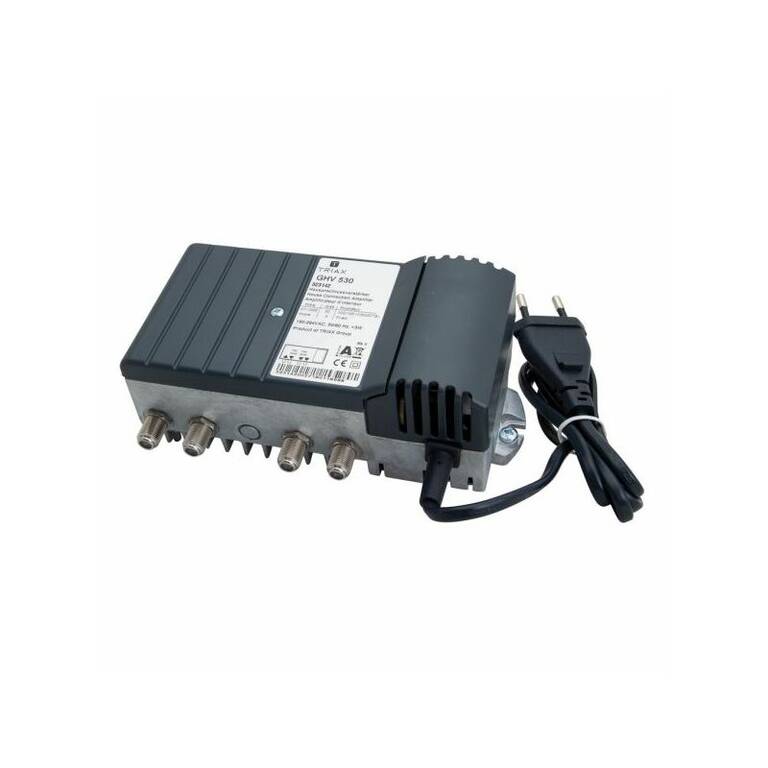

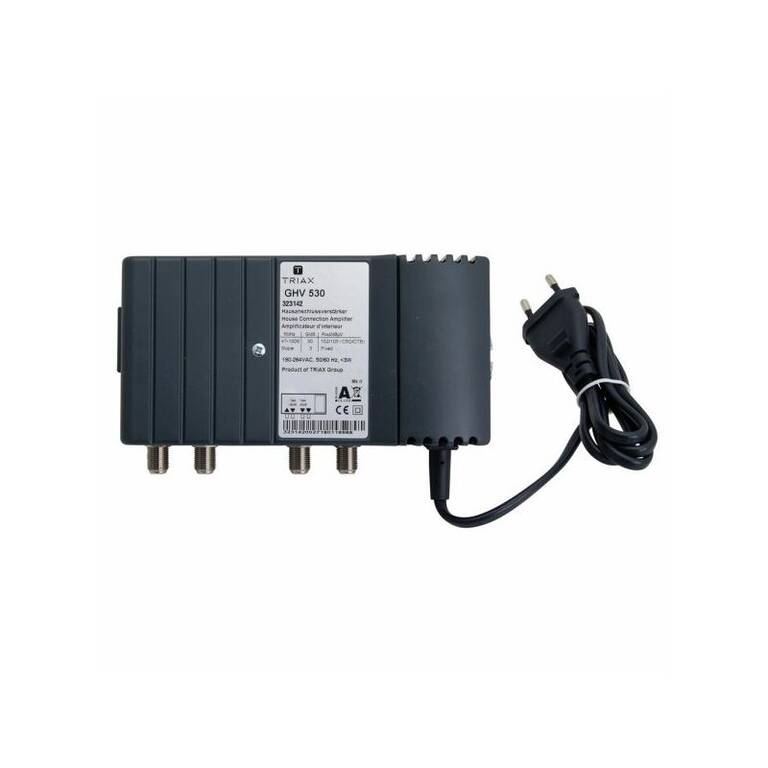

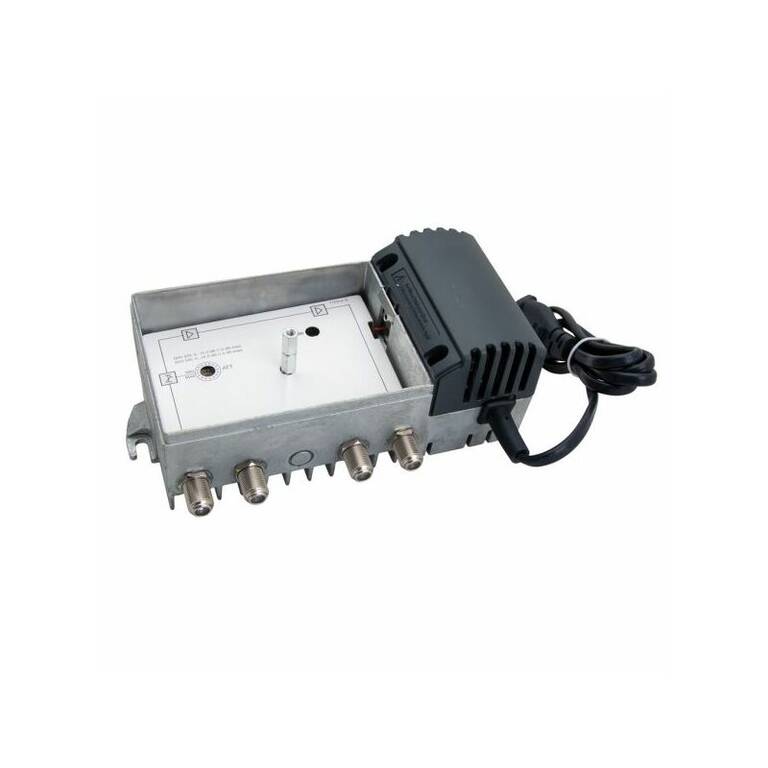

Triax GHV 530 Broadband Antenna Amplifier
Key features of Triax GHV 530 Broadband Antenna Amplifier
• Frequency: 47 - 1006MHz
• Amplification: 30 dB
• Noise factor: <7.0 (typ. 5) dB
• Return loss: at 40 MHz (-1.5 dB/octave)>18
• Output level CSO @ 60 dB IMD100 dB
• Output level CTB @ 60 dB IMD104 dB
• Connectors: F-connector
• Measurement point: -20 dB
• Power supply: (50-60 Hz) 190-264V
• Power consumption:<4W
• Operating temperature -25...+55°C
• Dimensions: 65 mm (height) x 100 mm (depth) x 170 mm (width)
• Weight: 650 g
Further details of Triax GHV 530 Broadband Antenna Amplifier
TRIAX GHV 530 is a professional broadband house amplifier suitable for amplifying signals from terrestrial digital terrestrial antennas, antenna systems and cable networks. It can be used as a cable and antenna signal amplifier for individual antennas, family houses, small community systems.

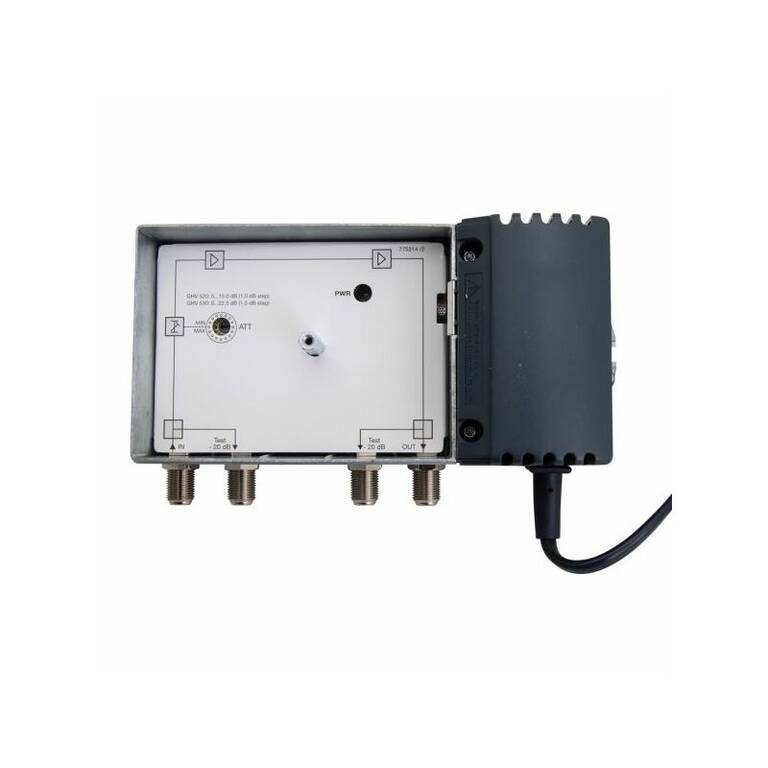

All gain and TILT control is provided by a circular switch or JUMPER - allowing for high reliability, time stable adjustment over conventional potentiometer adjustment.
- Low noise 30 dB output gain, 100-104 dB maximum output signal level
- Non-reversible (if Internet is not coaxial then the GHV 930 amplifier is required)
- For indoor use
- 1 input , 1 output , 2 measuring points
