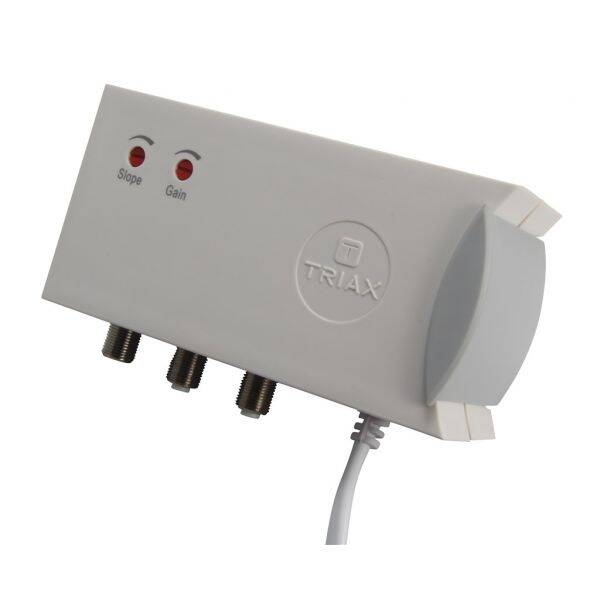

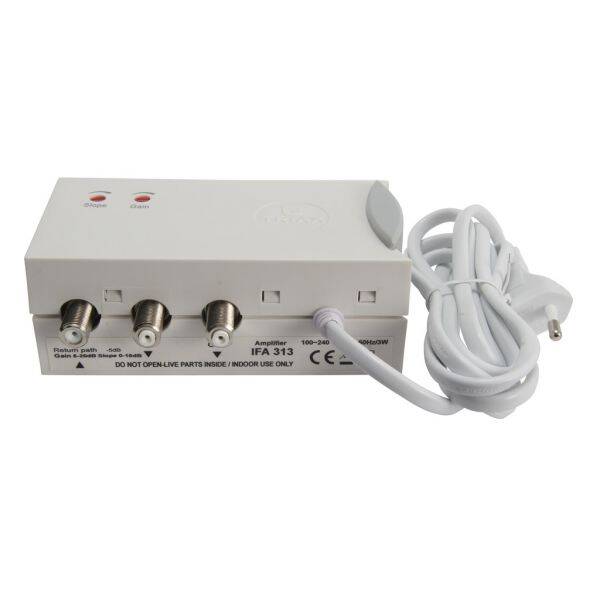

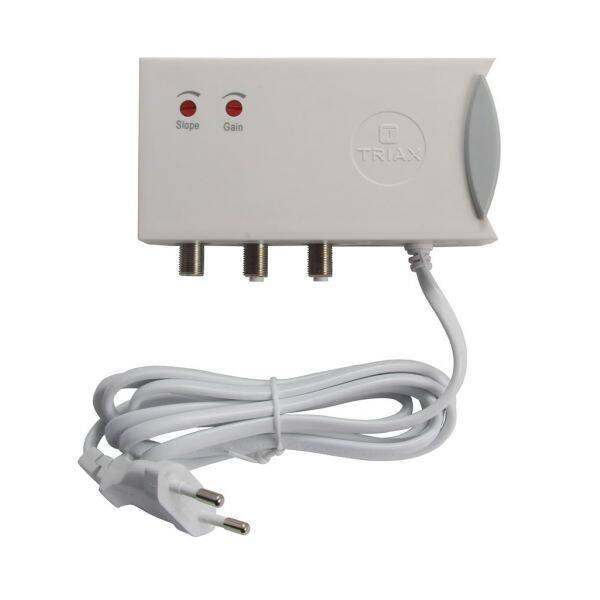

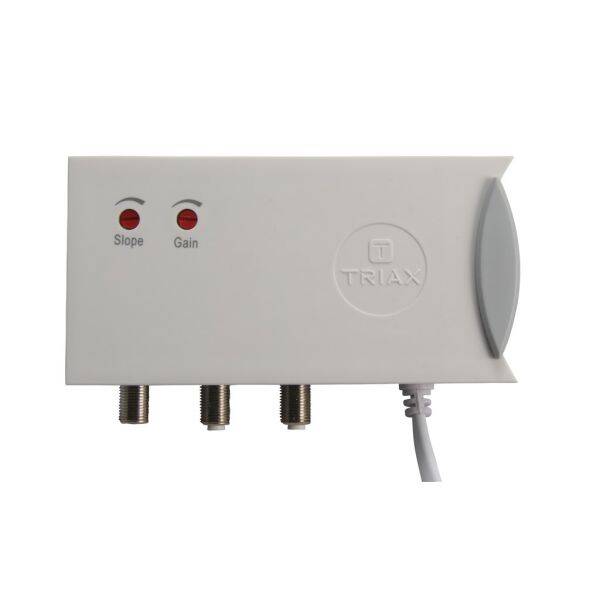

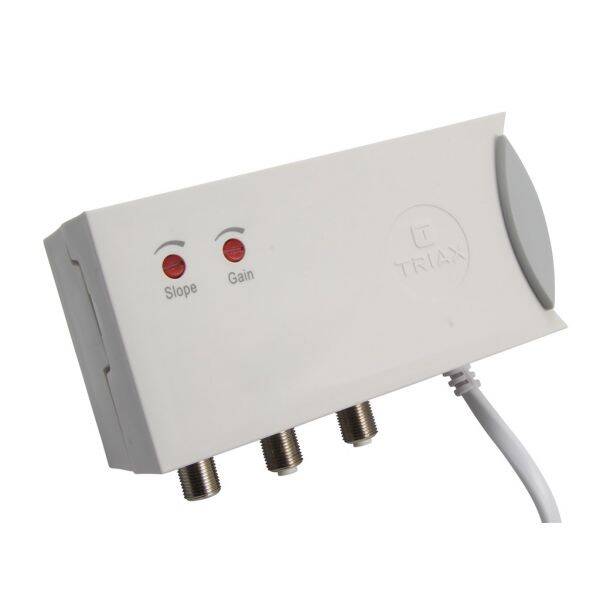

Triax IFA 313 Antenna Amplifier, 2 Outputs, 5-65 MHz

TRI-017-999
Triax IFA 313 Antenna Amplifier, 2 Outputs, 5-65 MHz
Triax IFA 313 Antenna Amplifier, 2 Outputs, 5-65 MHzTriax IFA 313 Antenna Amplifier, 2 Outputs, 5-65 MHzTriax IFA 313 Antenna Amplifier, 2 Outputs, 5-65 MHz
Triax IFA 313 Antenna Amplifier, 2 Outputs, 5-65 MHz

Key features of Triax IFA 313 Antenna Amplifier, 2 Outputs, 5-65 MHz

• The Triax IFA 313 amplifier is an indoor amplifier with, ideal for use in family houses, homes
• 1 input; 2 outputs
• Output connector: F socket 75 ohm with automatic termination
• Input connector: F socket
• Frequency range: 87-862 MHz
• Return frequency range: 5-65 MHz
• Equalization: 0-18
• Attenuation: 5-20 dB
• Passive return with attenuation - 5, 0dB
• Gain: 0-20 dB
• Noise figure: < 6.0
• AC supply voltage: 100-240 VAC
• Output level IMD 2, EN 50083-3101,0 dBµV
• Output level IMD 3, EN 50083-5108,0 dBµV
• Dimensions: 44 mm (height) x 118 mm (width) x 61 mm (depth) x 0.299 kg

The product is ordered directly from the Hungarian importer. The lead time is approximately 2-3 business days if the product is in stock, otherwise it is subject to confirmation by the importer.
Gross price (including 27% VAT): 31.57€ (Net price: 24.85€)
Add to Cart Price Watch
You can ask for e-mail price notifications when the price of this product gets under a limit you specify. To use this feature you need to have a user account and to be signed in.
2 year(s) warranty
Triax_IFA_313_catalog_en.pdf
English prospectus

2 year(s) warranty

Further details of Triax IFA 313 Antenna Amplifier, 2 Outputs, 5-65 MHz

The low channel density MATV/SMATV amplifier distributes a limited number of strong cable TV signals in your home. Despite their high power and efficient shielding, TRIAX IFA amplifiers are cost-effective and can be quickly installed anywhere indoors. Ideal for various types of MATV/SMATV solutions. Outputs with automatically sealed F terminals.


• Impedance: 75 Ω
• Power consumption: 1,5 W
• Loss Return on Investment: 5,0 dB
• Return loss: 10 dB
• Output level IMD 2, EN 50083-3: 101,0 dBµV
• Output level IMD 3, EN 50083-5: 108,0 dBµV
• Linearity return: ± 1,0 dB
• Linearity: ± 1,5 dB
