Triax O5A 06W Omnidirectional 5G Antenna (discontinued)

TRI-014-999
Triax O5A 06W Omnidirectional 5G Antenna
Triax O5A 06W Omnidirectional 5G AntennaTriax O5A 06W Omnidirectional 5G AntennaTriax O5A 06W Omnidirectional 5G Antenna
Triax O5A 06W Omnidirectional 5G Antenna
Triax O5A 06W Omnidirectional 5G Antenna
Triax O5A 06W Omnidirectional 5G Antenna

Key features of Triax O5A 06W Omnidirectional 5G Antenna

• Frequency range: 698-960/1710-2700/3300-3600/4800-5000 MHz
• Services: GMS/Wi-Fi/3G/4G/LTE/5G - (5G lower band)
• Impedance: 50 Ω
• MIMO
• VSWR: 3
• Connector type: 2 x SMA plug
• Output cable type: 2x2 m long PVC white UV protected low loss coaxial cable
• Brackets: with wingnuts
• Antenna usage: indoor, outdoor
• Dimensions: 200 mm (height) x 215 mm (length) x 70 mm (depth)
• Net weight: 0,750 kg

This product is not available.
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.

Further details of Triax O5A 06W Omnidirectional 5G Antenna

• Gain: 4-6 dBi
• Polarization: antenna 1 - horizontal; antenna 2 - vertical
• IP65 protection
• Voltage protection: DC grounding on the antenna
• Width horizontal: 360°
• Base width vertical: 120°
• Pole diameter: 30-53 mm
• Main material: plastic housing ABS
• Colour: RAL 1013 - White


The antennas are ready for the fast rollout of 5G in Scandinavia, providing speeds up to 100 times faster than 4G. Fully compatible with all mobile signals: use the best possible 4G LTE speeds now, without the need for future upgrades when 5G arrives. For maximum speed and reliability, our antennas are MIMO-compatible.

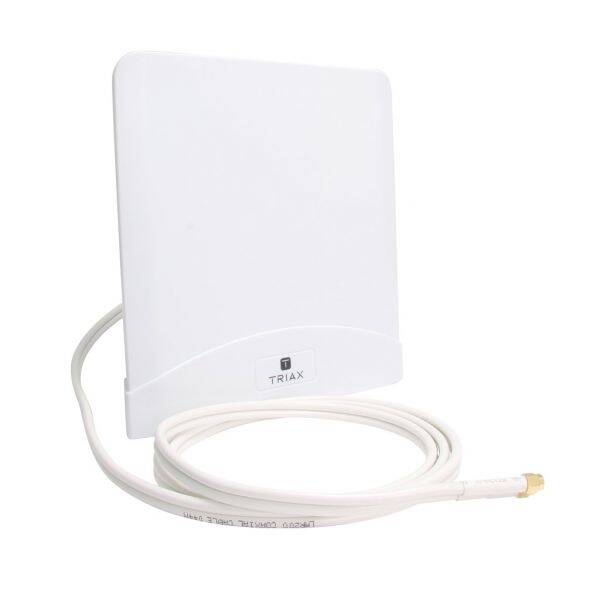

The antenna is supplied with a 2m white twin cable with connectors that attach directly to the 2 antenna sockets on the router.
