Triax TISI 001 Single Slim Line LNB Satellite Receiver Head

(discontinued)
TRI-056-999

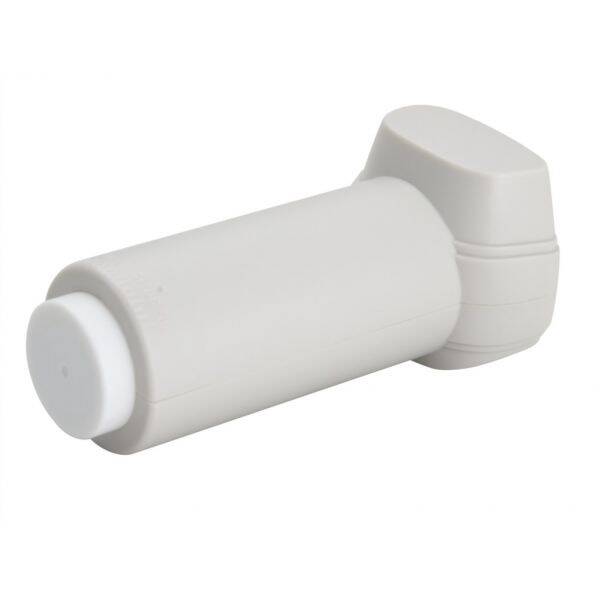

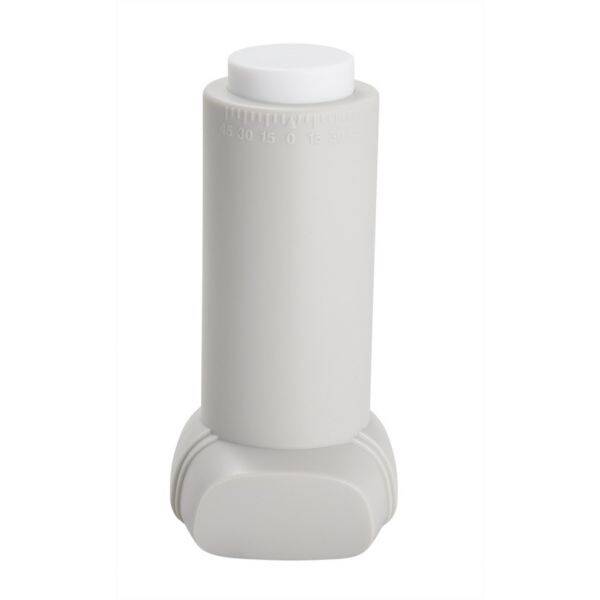

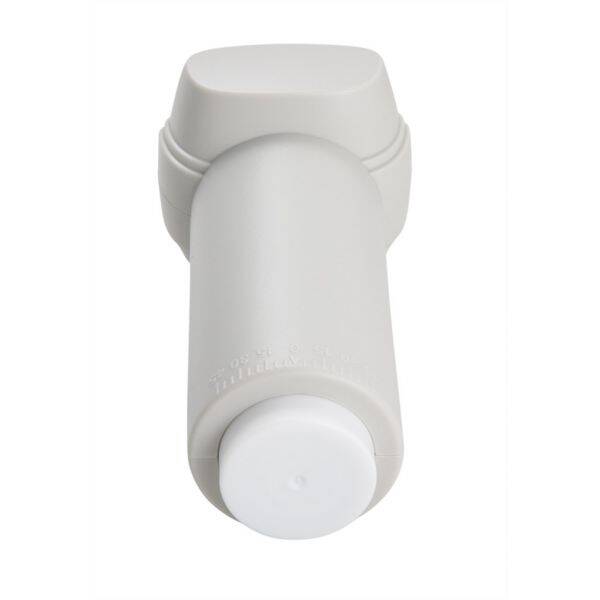

Triax TISI 001 Single Slim Line LNB Satellite Receiver Head
Triax TISI 001 Single Slim Line LNB Satellite Receiver HeadTriax TISI 001 Single Slim Line LNB Satellite Receiver HeadTriax TISI 001 Single Slim Line LNB Satellite Receiver Head

Key features of Triax TISI 001 Single Slim Line LNB Satellite Receiver Head

• Impedance: 75 Ω
• VSWR output: 2.0:1
• LNB type: single
• Noise max: type 0.3 dB
• DC Current consumption: 100 mA
• Input frequency low band: 10.7-11.7 GHz
• Input frequency high band: 11,7-12,75 GHz
• Output frequency low band: 950-2150 MHz
• Dimensions: 113.61 mm (height) x 54.53 mm (width) x 52.13 mm (depth)
• Net weight: 0.092 kg
• Manufacturer's item number: 304 842 TISI 001 Single

This product is not available.
Possible reasons that the product is not available from the manufacturer anymore or we decided to remove it from our product portfolio. We gladly help you to find the best optional product instead of this type, please contact us.
1 year(s) warranty
Triax_TISI_001_single_en.pdf
English prospectus

1 year(s) warranty

Further details of Triax TISI 001 Single Slim Line LNB Satellite Receiver Head

• High quality, low footprint
• Cutting edge RF technology
• Excellent cross-pole isolation
• Excellent low noise / low phase noise
• High performance / low power consumption
• Weatherproof and suitable for harsh environments
• Full range of Single, Twin, Quad, Quattro and High Gain types
• Smoothness gain (on the 26 MHz segment): 5 dB
• Conversion gain (tip): 50...62 dB
• Phase noise @ room temperature - 1 kHz:- 60 dBc/Hz
• Phase noise @ room temperature - 10 kHz:- 80 dBc/Hz
• Phase noise @ room temperature - 100 kHz:- 100 dBc/Hz
• False level: - 60 (max.) dBm
• Image rejection (min): 40 dB
• Feedhorn diameter: Ø 40 mm
• LO temperature drifting: ± 3 MHz
• Cross polarization isolation:20 dB
• Operating voltage vertical: 10,5...14,5 V/DC
• Operating voltage horizontal: 15,5...21,0 V/DC
• Temperature - operating: -30...60 °C
• Reflector type: offset
• Colour: RAL 7035 light grey
