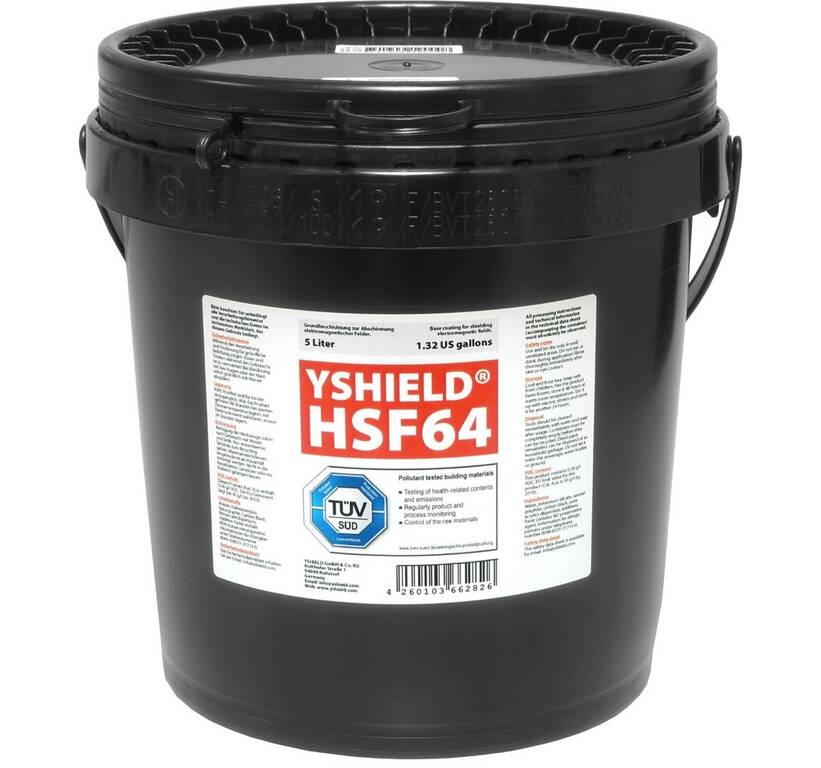

YShield HSF64 HF Standard Shielding Paint 5 Liter

Further details of YShield HSF64 HF Standard Shielding Paint 5 Liter

Screening attenuation
At a yield of 4 sqm/l:
At 1 GHz: Single layer 43 dB | Double layer 50 dB | Three layer 54 dB
At a yield of 8 sqm/l:
At 1 GHz: Single layer 36 dB | Double layer 43 dB | Three layer 48 dB

Underground
Adhesion on almost all absorbent substrates interior.

Top coating
Preferably covered with plastic bonded water-based emulsion paints, dispersion silicate paints or silicon resin paints.

Frost resistance
This product is frost resistant (proved for 5 frost-/thaw cycles) and can be shipped throughout the year by air cargo or ship.

Ingredients
Water, potassium silicate, natural graphite, carbon black, pure acrylics dispersion, additives, NO preservation agent.

Technical data
Please find detailled data in the table overview and the technical data sheet.

No nanotechnology
Our shielding paints are developed in accordance with strict ecological criteria. We use, for example, the carbon black with the lowest emission possible on the market and untreated natural graphite. We consciously do not use graphene, a nanomaterial where the hazard potential is still completely unknown.

TÜV-SÜD certification
We have our shielding paints monitored by TÜV-SÜD. The whole production process including quality control, emission behaviour and economical use of preserving agents is subject to monitoring. Please find the certificate above at the downloads.

Grounding
This product with an electrically conductive surface has to be integrated into the functional-equipotential bonding (FEB). Please find suitable grounding accessories under "Grounding". Must be grounded! We recommend interior the grounding strap GSX plus grounding plate GS / GF.

Shielding attenuation HF & LF
This product shields high frequency electromagnetic fields (HF). Unless otherwise stated, the indicated dB-values apply to 1 GHz. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006. This product with an electrically conductive surface shields low-frequency alternating electric fields (LF).

Laboratory & expert report of shielding attenuation up to 40 GHz
We have already invested in our own professional EMV laboratory years ago. We not only use it to create our laboratory screening reports but also to check each batch daily. Additionally, we have all our products checked by an independent, well-respected expert. Double checked for twice the safety. Please find the reports above at the downloads.

Ready for 5G
Some companies offer "special" 5G-products. This products shields all 5G-frequencies, even without advertising this! Find two gray bars in all shielding diagrams with the 5G frequency spectrums FR1 (600 MHz – 6GHz) and FR2 (24 GHz – 40 GHz).
