YShield PRO54 HF Standard Shielding Paint 1 Liter
Key features of YShield PRO54 HF Standard Shielding Paint 1 Liter
• Special paint using carbon fibres
• Up to 90 dB at 40 GHz
• TÜV-SÜD certified
• Screening attenuation at 1 GHz: single layer 43 dB | double layer 49 dB | three layer 55 dB
• Reccommended use quantity: 4 m2/l
• For interior and exterior use
• 1 liter package
Further details of YShield PRO54 HF Standard Shielding Paint 1 Liter
As a shielding paint for buildings
Special paint with a focus on hardness without staining, by using carbon fibres. Shields up to 93 dB at 40 GHz. TÜV-SÜD certified.
Due to being formulated based on carbons fibers it is harder and adheres significantly better to the substrate than other paints: 12 N/mm. As it completely lacks graphite, it does hardly stain. The paint is easy to process and forms an even film.
Screening attenuation
With a coverage of 4 qm/l: Single layer 43 dB | Double layer 49 dB | Three layer 55 dB
Technical data
Please find detailled data in the table overview and the technical data sheet.
No nanotechnology
Our shielding paints are developed in accordance with strict ecological criteria. We use, for example, the carbon black with the lowest emission possible on the market and untreated natural graphite. We consciously do not use graphene, a nanomaterial where the hazard potential is still completely unknown.
TÜV-SÜD certification
We have our shielding paints monitored by TÜV-SÜD. The whole production process including quality control, emission behaviour and economical use of preserving agents is subject to monitoring. Please find the certificate above at the downloads.
Grounding
This product with an electrically conductive surface has to be integrated into the functional-equipotential bonding (FEB). Please find suitable grounding accessories under "Grounding".

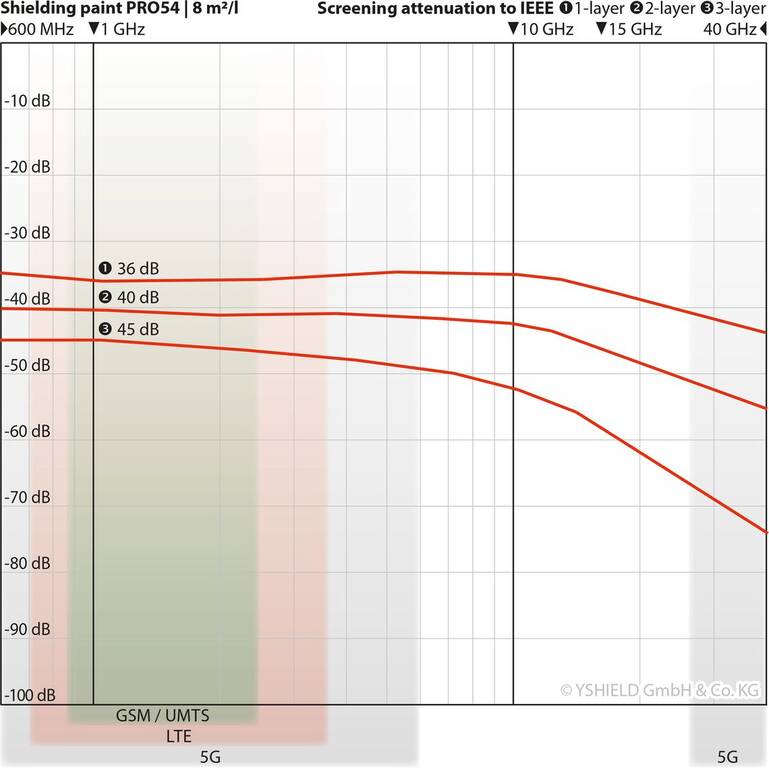

Shielding attenuation HF & LF
This product shields high frequency electromagnetic fields (HF). Unless otherwise stated, the indicated dB-values apply to 1 GHz. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006. This product with an electrically conductive surface shields low-frequency alternating electric fields (LF).
Laboratory & expert report of shielding attenuation up to 40 GHz
We have already invested in our own professional EMV laboratory years ago. We not only use it to create our laboratory screening reports but also to check each batch daily. Additionally, we have all our products checked by an independent, well-respected expert. Double checked for twice the safety. Please find the reports above at the downloads.
Ready for 5G
Some companies offer "special" 5G-products. This products shields all 5G-frequencies, even without advertising this! Find two gray bars in all shielding diagrams with the 5G frequency spectrums FR1 (600 MHz – 6GHz) and FR2 (24 GHz – 40 GHz).
