YShield RDF25-76 Window Film for Shielding (76 cm x 1 m)

Further details of YShield RDF25-76 Window Film for Shielding (76 cm x 1 m)

Properties

Precious metal coated and self-adhesive special window film for shielding of high-frequency radiation (HF). Window film with 25 % light transmission in brown. Attenuation 35 dB. Outdoor application even on heat absorbing glass surfaces.

Application

For the application you mandatory need our plastic scraper FVR10, the mounting concentrate FMK30 and the edge sealant FL4, see our accessories below. An assembly instruction is included in the delivery. Please note: Do not apply the edge sealant until 8 weeks after installing the window film, so that excess water can evaporate!

Grounding

This product with an electrically isolated surface cannot be contacted or grounded.

Shielding attenuation HF & LF

This product shields high frequency electromagnetic fields (HF). Unless otherwise stated, the indicated dB-values apply to 1 GHz. Measurement from 600 MHz to 40 GHz according to standards ASTM D4935-10 or IEEE Std 299-2006.

Ready for 5G

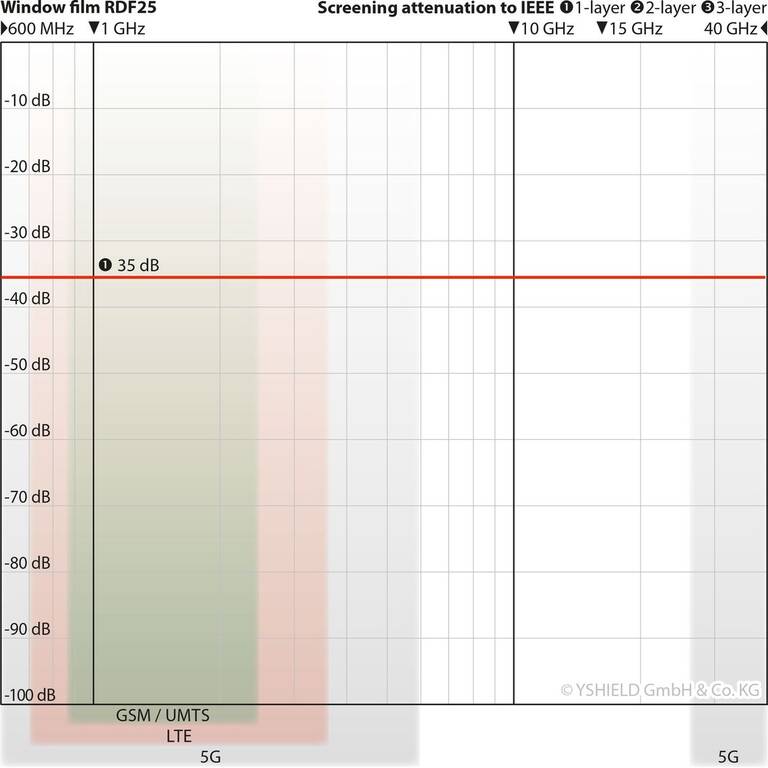

Some companies offer "special" 5G-products. This products shields all 5G-frequencies, even without advertising this! Find two gray bars in all shielding diagrams with the 5G frequency spectrums FR1 (600 MHz – 6GHz) and FR2 (24 GHz – 40 GHz).
