SSB EcoFlex 10 PLUS Heatex Coaxial Cable

Further details of SSB EcoFlex 10 PLUS Heatex Coaxial Cable

Ecoflex 10 Plus Heatex is a halogen-free and flame-retardant coaxial cable designed for installation in buildings, facilities, and high-risk areas. Ecoflex cables with Heatex jackets are flame-resistant and have minimal fire propagation. Heatex jackets are low-smoke, ensuring visibility of escape routes in case of a fire.

Heatex jackets are halogen-free and do not contain reactive elements such as fluorine, chlorine, and bromine. They do not produce corrosive gases that could lead to significant property damage. The UV stability of the robust Heatex jacket allows for exterior use without limitations.

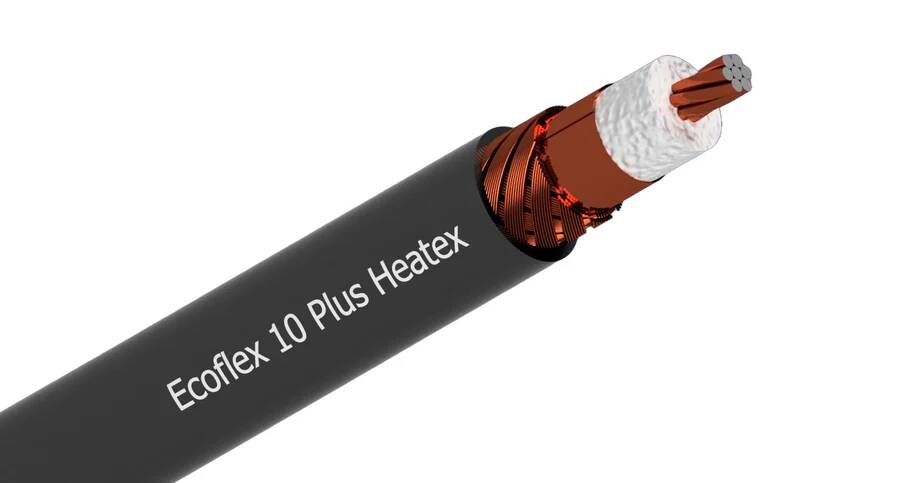

Ecoflex 10 Plus Heatex features a 7-strand hybrid inner conductor with an aluminium core and welded copper jacket. The surface characteristics and corresponding RF properties are significantly better than those of conventional copper strands. Another advantage is the double shielding: an overlapping copper foil and an overlying copper braid ensure a high shielding effectiveness of > 90 dB at 1 GHz.

Due to its Cca fire protection class, Ecoflex 10 Plus Heatex is suitable for installation in public buildings. Ecoflex 10 Plus Heatex is certified for railway applications for interior/ exterior use according to the R15 and R16 requirement sets of EN 45545-2 standard.
