SSB H-155 Low-Loss 50 Ohm Coax Cable

Further details of SSB H-155 Low-Loss 50 Ohm Coax Cable

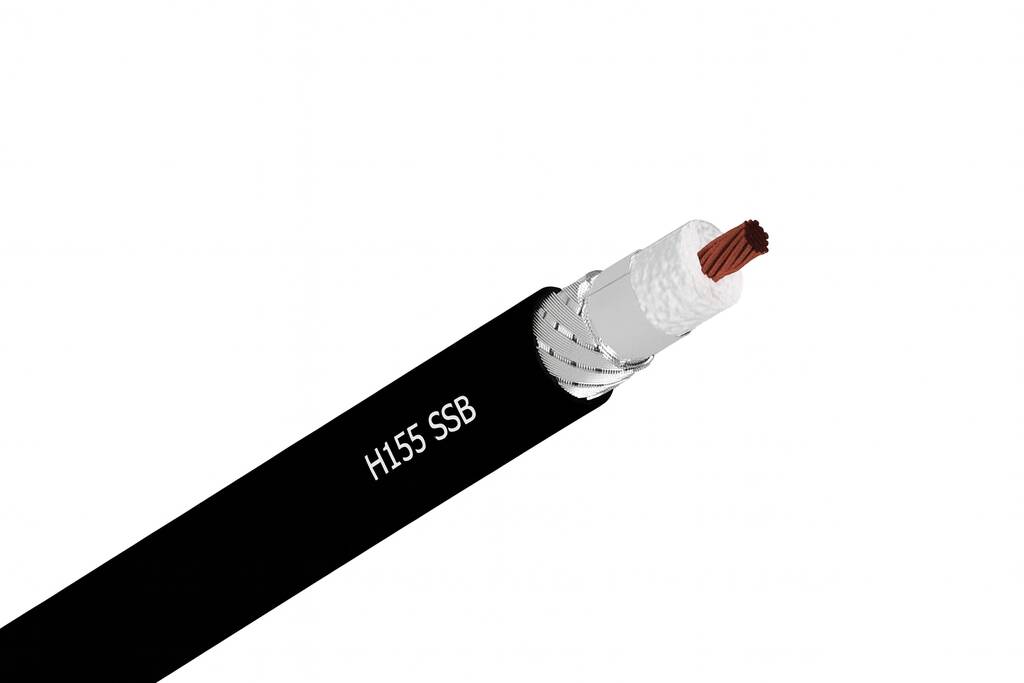

H155 from SSB-Electronic is a thin and extremely flexible coaxial cable for the frequency range up to 6 GHz. Due to the low attenuation and the great flexibility, this cable can be used for many applications in communications and radio technology. The inner conductor of the cable consists of 19 stranded copper wires, each with a diameter of 0.28 mm. This structure of the inner conductor enables the outstanding flexibility of the cable. The extremely low attenuation of H155 is achieved through a low-loss PE dielectric. In order to achieve good shielding attenuation, the outer conductor of the cable has two layers. At first, the aluminium-PET-aluminium foil is used, with a special, particularly tear-resistant and heat-resistant Mylar® polyester as the PET layer. A shield braiding of tinned copper wires with a coverage of 75% is applied to this foil. The cable has a UV-resistant PVC outer jacket. The H155 from SSB-Electronic is suitable for numerous applications like WLAN, GPS, CB and cellular phone antenna conncections, for short antenna feeder runs and many other high-frequency applications.
