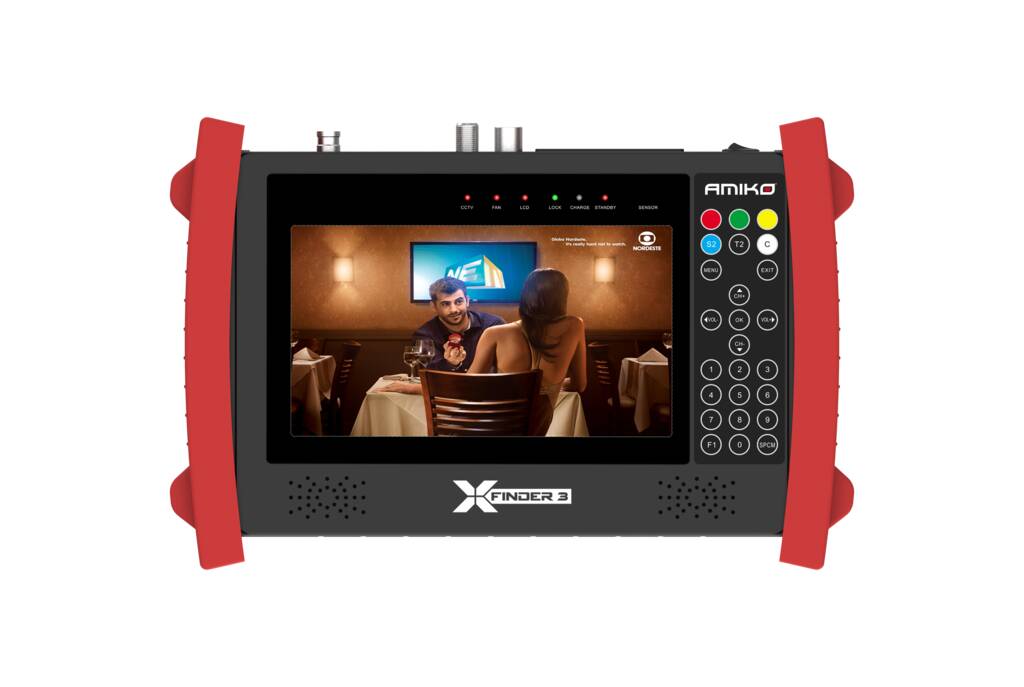

Amiko X-FINDER 3 DVB-S2/T2/C Signal Measurement with Conax reader

Further details of Amiko X-FINDER 3 DVB-S2/T2/C Signal Measurement with Conax reader

• System resources:
Main processor: 800 MHz based CPU
Flash memory: 64 Mbytes
DDR RAM: 2048 Mbits

• Satellite tuner: DVB-S / DVB-S2
Input connector: F-type connector, female
Frequency range: 950MHz - 2150MHz
Signal level: -65 to -25dBm
LNB power and polarization: Vertical: +13V
Horizontal: Horizontal: +18V
Overload protection
22KHz Audio: 22±1KHz
DiSEqC control: Amplitude: 0.6±.02V
1.0, 1.1, 1.2, USALS version
Demodulation: QPSK, 8PSK
Input signal rate: 2-45Mbps, convolution code rate

• Terrestrial tuner: DVB-T / DVB-T2
Input connector: IEC type connector, female
Signal level: Nordig compatible, DBOOK compatible
DVB-T2: LPDC + BCH 1/2, 3/5, 2/3, 3/4, 5/6
Frequency range: 47-862MHz
Guard interval: 1/4, 19/256, 1/8, 19/128, 1/16, 1/32, 1/128
FFT mode: 1k, 2k, 4k, 8k, 16k, 32k normal and extended FFT modes
Channel bandwidth: 6/7/8MHz

• Cable tuner: DVB-C
Input connector: connector: IEC type, female connector
Frequency range: 47-862MHz
Signal level: -20dBmV - +20dBmV
Bandwidth: 8MHz
Demodulation: 16QAM, 32QAM, 64QAM, 128QAM, 256QAM
Input signal rate: 1.5 - 7Ms/s

• MPEG TS A/V decoding:
Transport Stream: MPEG-2, H.265
Input speed: Bit rate: max. Hbit/s: Hbit/s: Hbit/s: Hbit/s: Hbit/s: Hbit/s: Hbit/s: Hbit/s:
Hbit/s: Max.
Aspect ratio: 4:3, 16:9
Video decoding: MPEG-2, MP@ML, MPEG-4 part10/H.264, H.265
Audio decoding: MPEG-1 layer I/II, MPEG2 layer II, Dolby Digital
Audio mode: left, right, stereo, mono
Sample rate: 32, 44.1, 48KHz

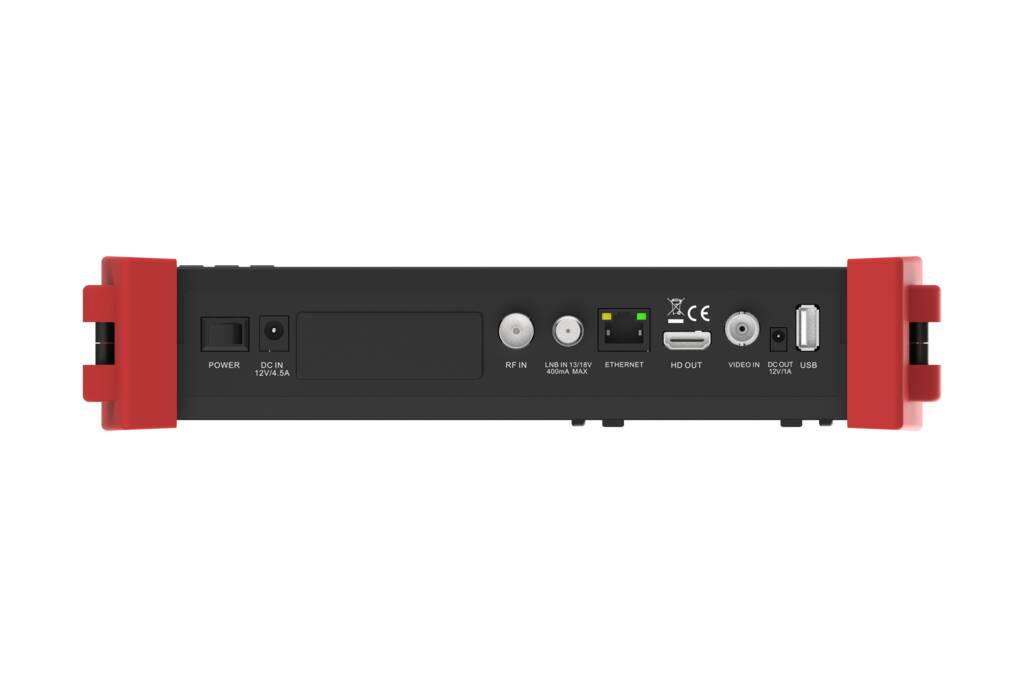

• A/V and data input/output:
Video input: BNC type, analog video input
USB: high speed USB2.0 connection (type A)
Digital video output
Ethernet: RJ45 10/100M

• Power supply:
Input voltage: AC 100-240V 50/60Hz
Output voltage: ACV/60V: Output voltage: ACV/60V: ACV/60V: ACV/60V: 4.5A max.
Power consumption: 48W max
Battery: 7.4V 6.3Ah
Battery charging time: 3.5 hours
Battery discharge time: 6-7 hours

• Physical specifications:
LCD display: LCD display: 7 inches
Size: 275mm x 175mm x 50mm (W*H*D)
